Hyundai Santa Cruz: Floor Console / Rear Console Cover

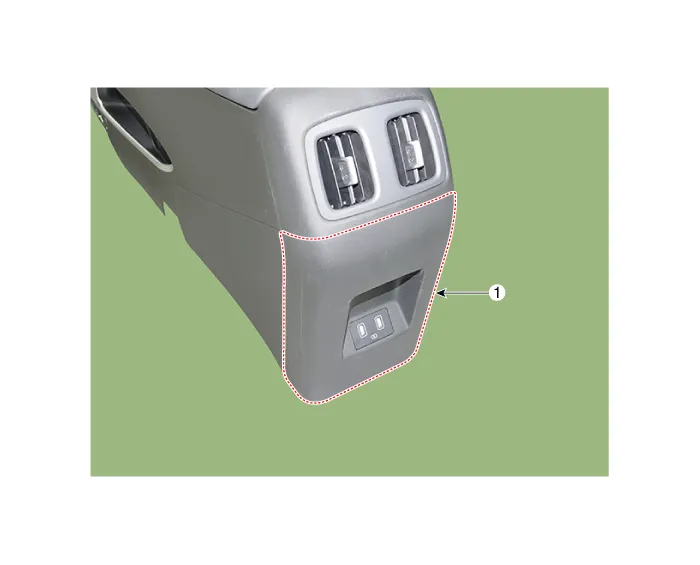

- Component Location

1. Rear console cover


- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the trim and panels.

1.Remove the floor console assembly.(Refer to Floor Console - "Floor Console Assembly")

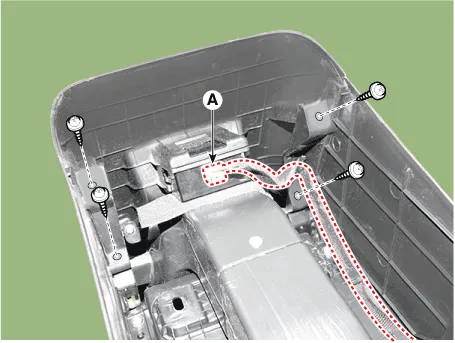

2.Loosen the mounting screws, disconnect the rear console cover connector (A).

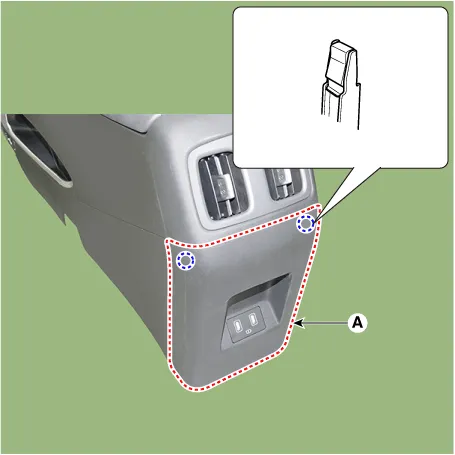

3.Remove the rear console cover (A).

4.To install, reverse removal procedure.



• Make sure the connector is connected properly.

• Replace any damaged clips (or pin-type retainers).
