Hyundai Santa Cruz: Hood / Hood Latch Release Handle

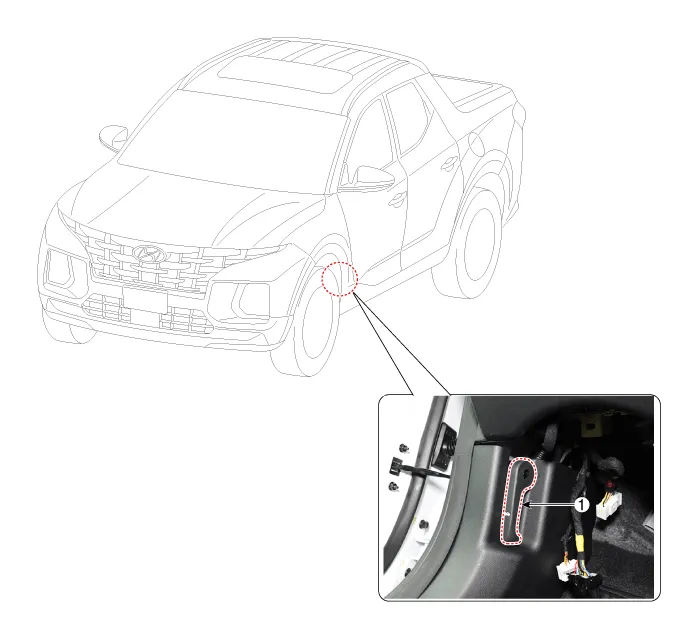

- Component Location

1. Hood latch release handle


- Replacement

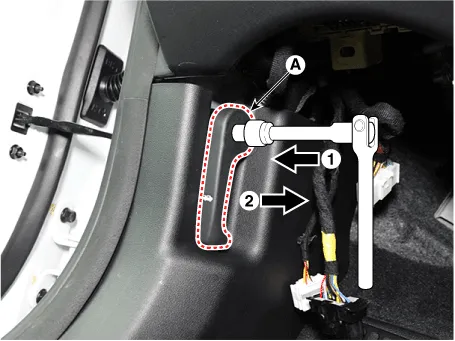

1.Using a socket, remove the hood release handle (A).

2.To install, reverse removal procedure.



• Make sure the hood latch cable is connected properly.

• Make sure the hood locks / unlocks and opens / closes properly.
