Hyundai Santa Cruz: Dual Clutch Control System / DCT Control Module (TCM)

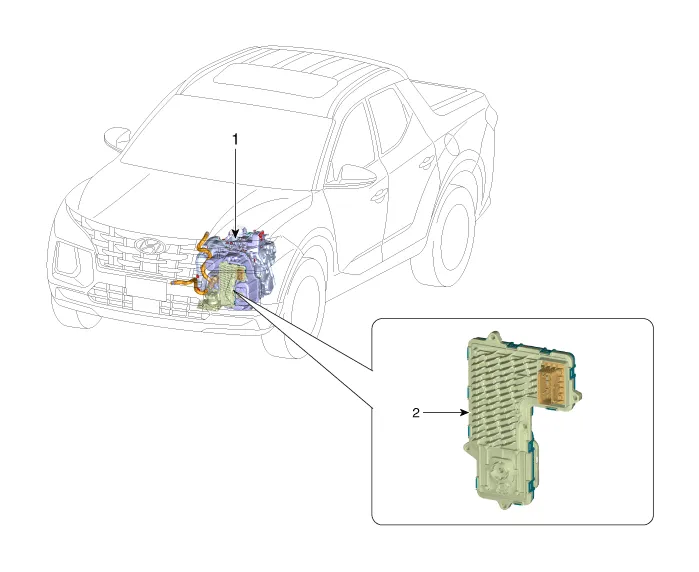

- Components Location

1. Dual Clutch Transmission(DCT) assembly
2. DCT control module (TCM)

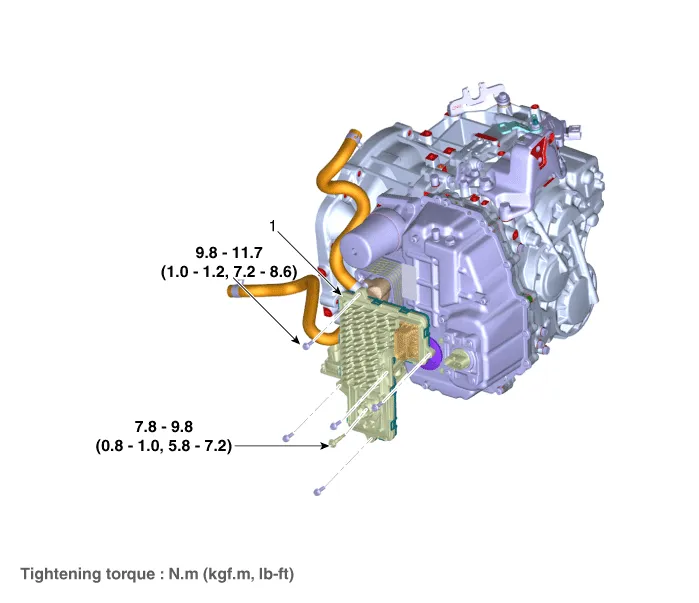

- Components

1. DCT control module (TCM)


- Connector and Pin Function

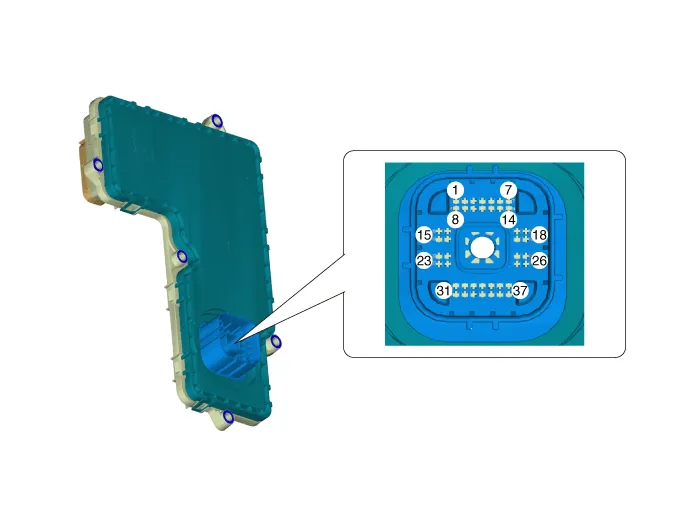

Connector [A]

PinDescriptionPinDescription
1Input speed sensor 2 signal23Oil temperature sensor (-)
2Input speed sensor 2 power_9 V24Pressure sensor signal (Clutch actuator 1)
3Gear position sensor power_5 V (Gear position 1, 3, 5)25Low side driver_gear shift cylinder 5 (N & 5)
4Gear position sensor ground (Gear position 1, 3, 5)26Low side driver_clutch actuator 1
5Gear position 5 (N & 5)27Oil temperature sensor (+) for cooling
6Gear position 2 (2 & R)28Oil temperature sensor (+) for control
7Gear position sensor power_5 V (Gear position 2, 4)29High side driver_gear shift cylinder 5 (N & 5)
8-30High pressure oil pump_ sensor PWM signal for control
9Input speed sensor 1 signal31High pressure oil pump_ sensor signal B for control
10Input speed sensor 1 power_9 V32High pressure oil pump PWM_Incre. B for control
11Gear position 1 (1 & 6)33High pressure oil pump sensor ground for control
12Gear position 3 (7 & 3)34Low side driver_gear shift cylinder 2 (2 & R)
13Gear position 4 (8 & 4)35Low side driver_gear shift cylinder 4 (8 & 4)
14Gear position ground (Gear position 2, 4)36Low side driver_line
15Pressure sensor power_5 V37Low side driver_clutch actuator 2
16Pressure sensor signal(line)38High pressure oil pump_sensor index signal for control
17Low side driver_gear shift cylinder 1 (1 & 6)39High pressure oil pump_sensor signal A for control
18Low side driver_gear shift cylinder 3 (7 & 3)40High pressure oil pump_sensor power_5V for control
19Pressure sensor ground41High side driver_gear shift cylinder 2 (2 & R)
20Pressure sensor signal (Clutch actuator 2)42High side driver_gear shift cylinder 4 (8 & 4)
21High side driver_gear shift cylinder 1 (1 & 6)43High side driver_line
22High side driver_gear shift cylinder 3 (7 & 3)44High side driver_clutch actuator 2

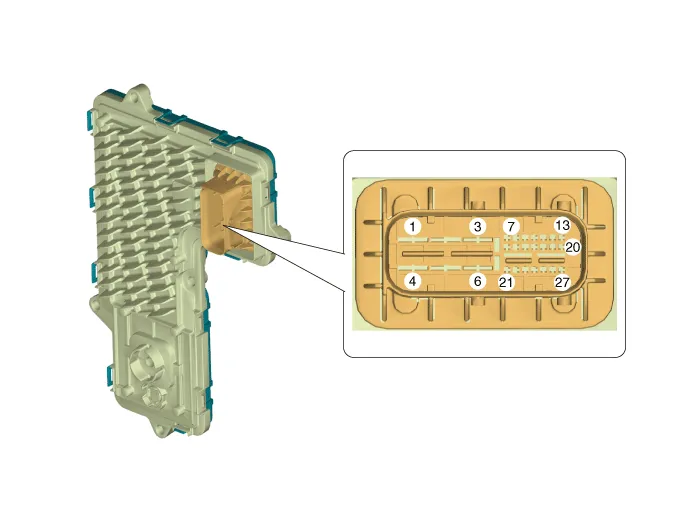

Connector [B]

PinDescriptionPinDescription
1High pressure oil pump motor V for control15-
2Ground 116-
3Ground 217PT-Local 1 Low (CAN)
4High pressure oil pump motor U for control18PT-Local 1 High (CAN)
5High pressure oil pump motor W for control19P-CAN Low
6Battery voltage20P-CAN High
7Position switch power_5 V (In case by SBC)21-
8Position switch power signal 1 (In case by SBC)22-
9Position switch power signal 2 (In case by SBC)23Position switch ground (In case by SBC)
10Paddle shift down24Local-DCT 1 High (CAN)
11Paddle shift up25Local-DCT 1 Low (CAN)
12-26-
13IG.127-
14-

- Inspection

1.The DCT system can be more quickly diagnosed for problems by using the vehicle diagnostic system (GDS). (Refer to DTC guide)

• GDS provides the following information.

(1)Self diagnosis : Inspects and displays diagnostic trouble code (DTC)

(2)Sensor data : Checks the system input/output value status

(3)Forced operation : Checks the system operating status

(4)Additional function : Controls system options, zero point adjustment and other functions

Transmission Control Module (TCM) Inspection Procedure

1.Inspecting TCM ground circuit: Measure the resistance between the TCM and chiassis ground. (Check the Pin connected to the chassis ground while using the back of the harness connector as the base point for TCM.)

Normal reading (resistance) : Below 1Ω

2.Inspecting the TCM connector: Disconnect the TCM connector and visually inspect to see whether there is a bend on the ground Pin of the harness connector. Also visually check the connection pressure.

3.If no problem is found during inspection in step 1 and step 2, then the problem is with the TCM itself. In this case, replace the TCM and inspect the vehicle again.

4.Re- inspecting TCM: Install the TCM that was determined to have malfunctioned from step 3 in another vehicle. Reset the error code and then check the operation in that vehicle. If the vehicle operates without any problems, then inspect the first vehicle with the initial problem again.

- Removal



• Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.(Refer to General Information - "Lift and Support Points")

1.Perform the line pressure removal mode off procedure by using the diagnostic tool.

2.Turn ignition switch OFF and disconnect the negative (-) battery cable.

3.Remove the air cleaner assembly and air duct.(Refer to Engine Mechanical System - "Air cleaner")

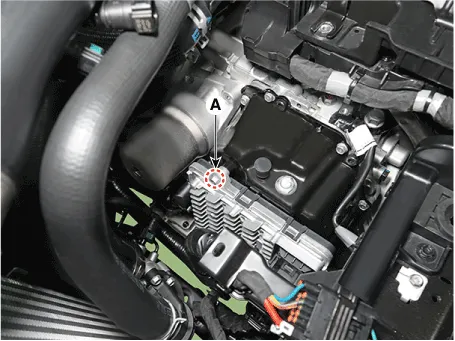

4.Loosen the TCM upper mounting bolts (A).

Tightening torque :9.8 - 11.7 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.6 lb·ft)

5.Remove the engine room under cover.(Refer to Engine Mechanical System - "Engine Room Under Cover")

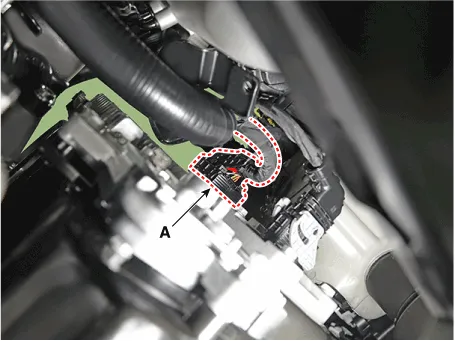

6.Disconnect the TCM connector (A).

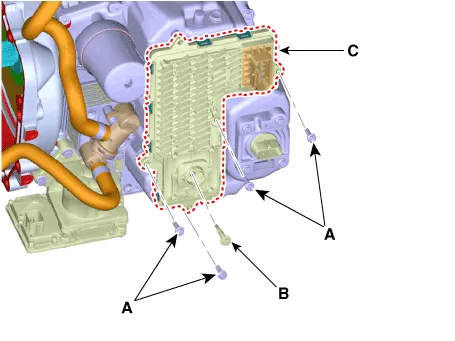

7.Remove the TCM (C) after loosening the mounting bolts (A, B).

Tightening torque:(A) : 9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft) (B) : 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

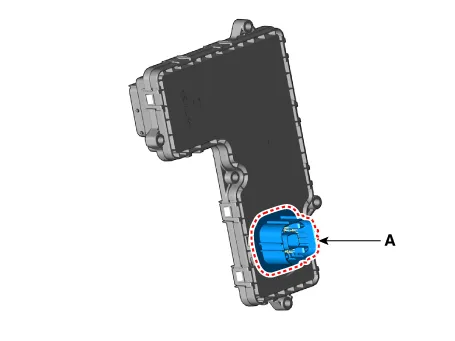

• Be careful not to damage the TCM pin part (A) when removing the TCM assembly.

- Installation

1. To install, reverse the removal procedures.



• Make sure the TCM pin part (A), and E-module part (B) fit when installing.

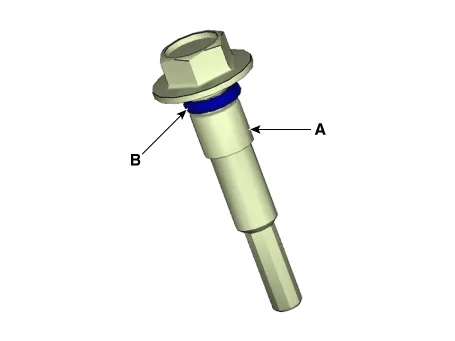

• When reinstalling the TCM, must be replaced the TCM connector moungting bolt (A) with new one and apply the oil to the O-ring (B) before tightening it.

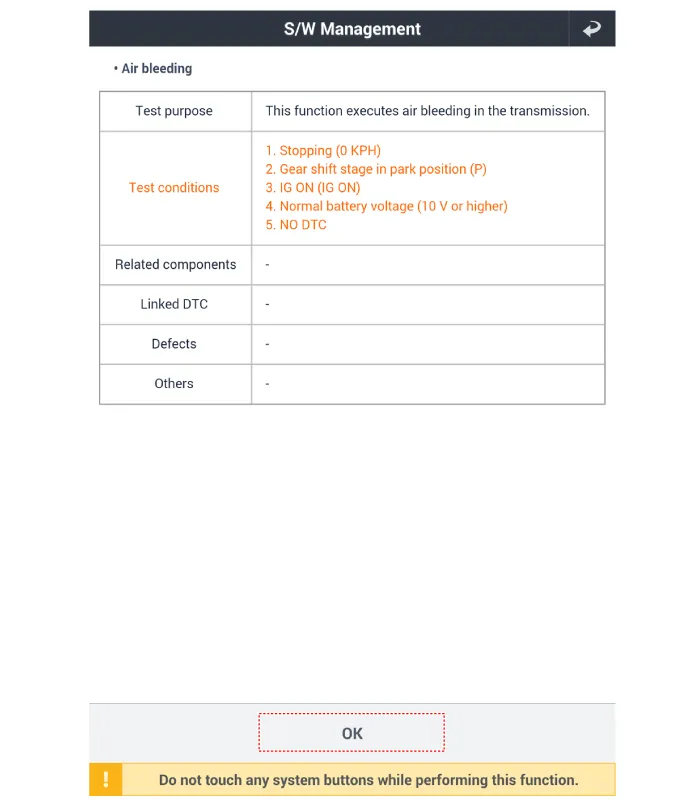

2.Perform the air bleeding procedure by using the diagnostic tool.

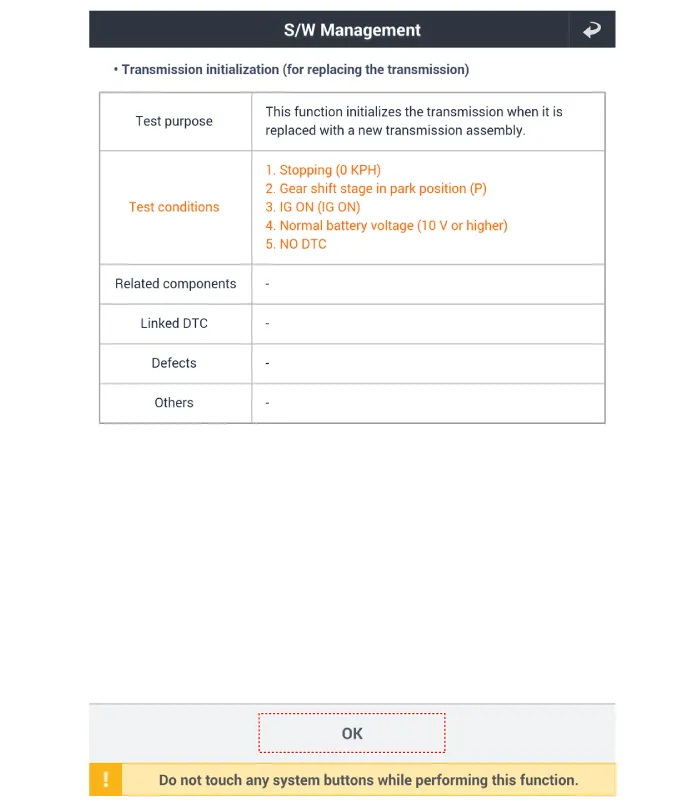

3.Perform the factory mode exit procedure by using the diagnostic tool if replaced transmission with a new one.

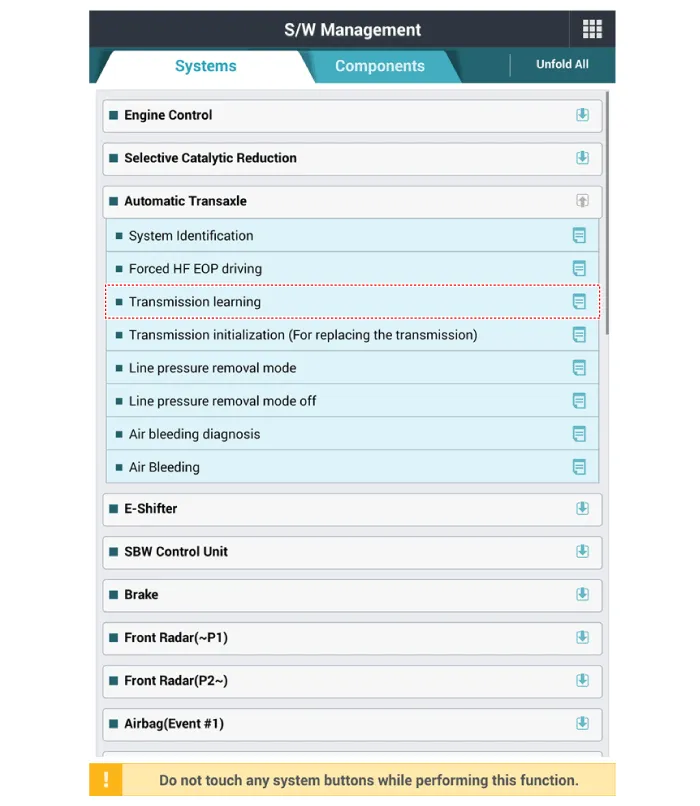

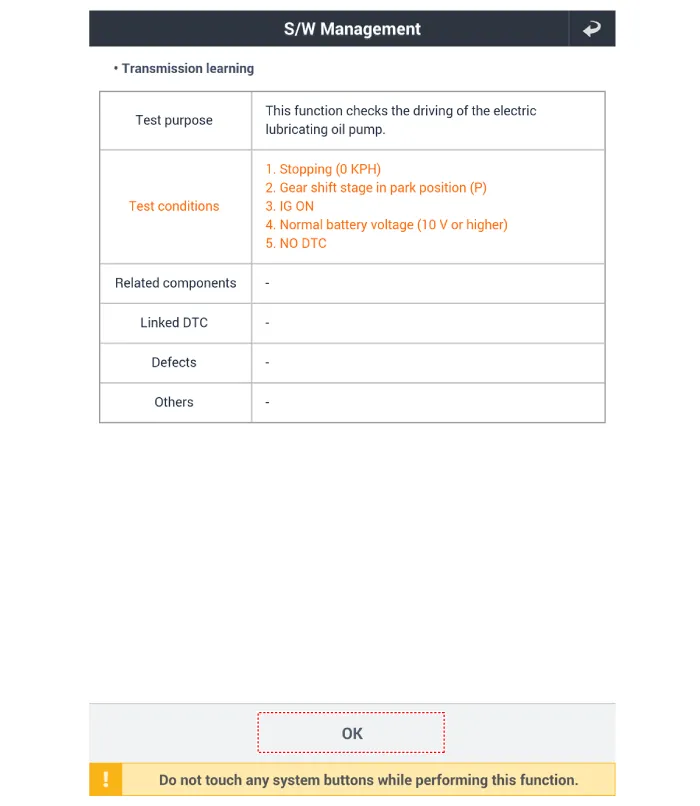

4.Perform the clutch touch point learning procedure using the diagnostic tool after replacing TCM

5.Perform the touchpoint curve learning procedures.

• Perform to learn a touchpoint curve.

(1)Drive the accelerator pedal at a low angle after starting from a stop condition P → D, P → R (Drive while accelerating pedal from 10% to 30% and gradually increasing)

(2)Drive the accelerator pedal at a middle angle after starting from a stop condition P → D, P → R (Drive while accelerating pedal from 30% to 50% and gradually increasing)



• An accelerator pedal angle doesn't need to be driven exact but needs to drive while gradually increasing the angle to ensure a good learning procedure.

(3)Repeat the above procedure. (Test time 2 min)

6.Re- perform the touchpoint curve learning procedures after DCT learning procedure, when there is delayed acceleration or shift shock occurs. (Maximum 5 time)
