Hyundai Santa Cruz: Dual Clutch Control System / Shift Lever

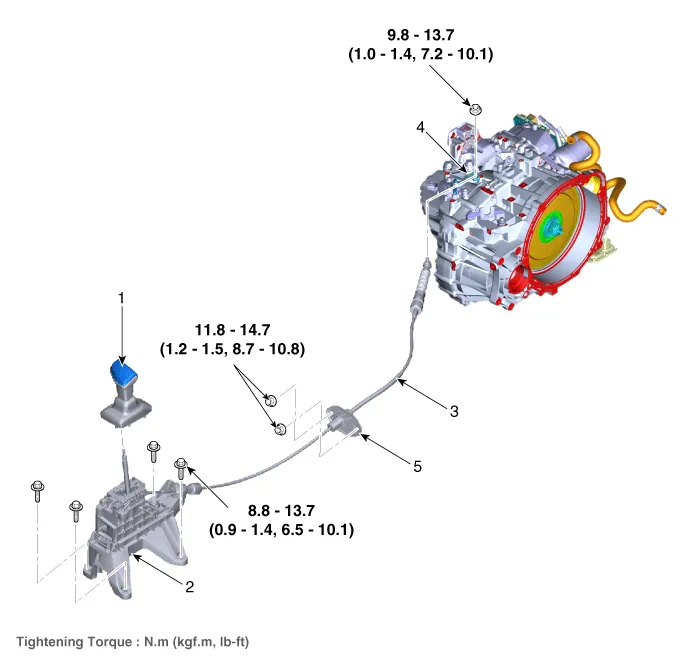

- Components

1. Shift lever knob & boots assembly
2. Shift lever assembly
3. Shift cable
4. Manual control lever
5. Shift cable retainer


- Removal

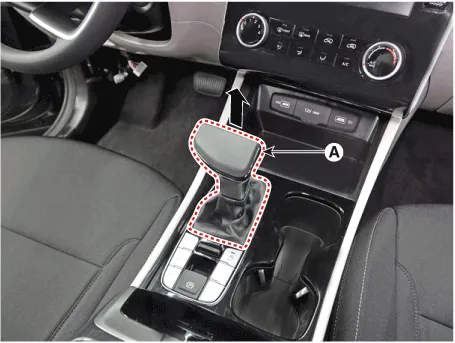

1.Remove the shift lever knob & boots (A) pull both of it up.

2.Remove the floor console assembly.(Refer to Body (Interior and Exterior) - "Floor Console")

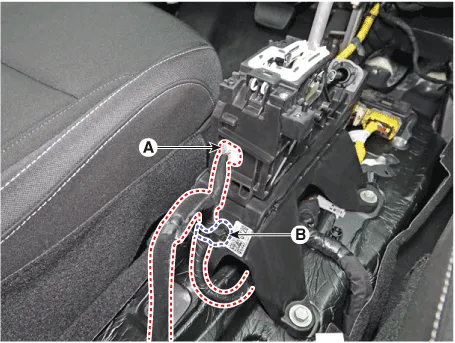

3.Disconnect the shift lever connector (A) and wiring clip (B).

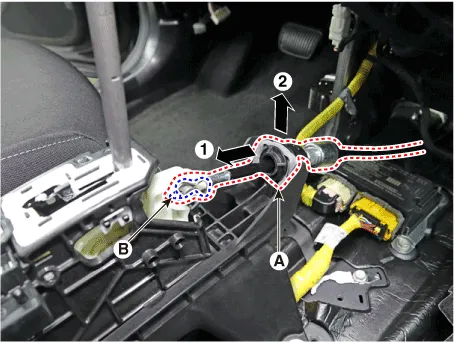

4.Disconnect the shift cable (A) after removing the snap pin (B).

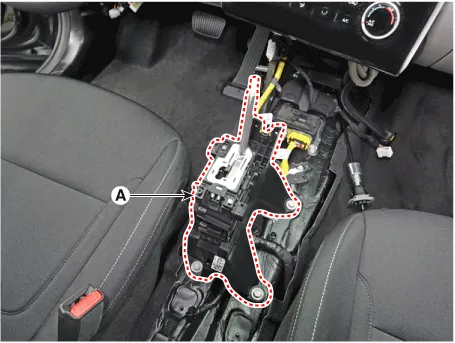

5.Remove the shift lever assembly (A) after removing the bolts.

Tightening torque : 8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

- Installation

1. To install, reverse the removal procedure.



• Before installing, check that the shift lever and manual control lever are placed in the "N" position.

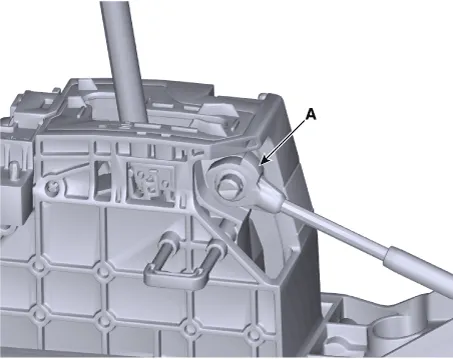

• When assembling shift cable, the projection (A) must face upwards.

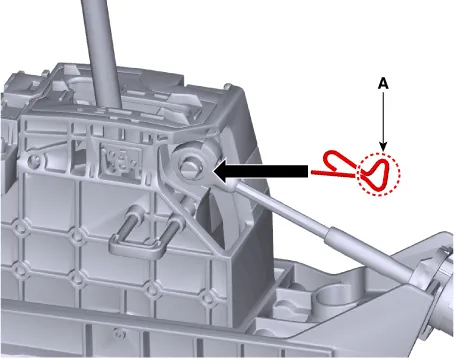

• When assembling the snap pin, be careful about the correct direction.

– The band portion (A) must point to the front of the vehicle.

– The band portion (A) must point outwards.
