Hyundai Santa Cruz: Hood / Hood Latch

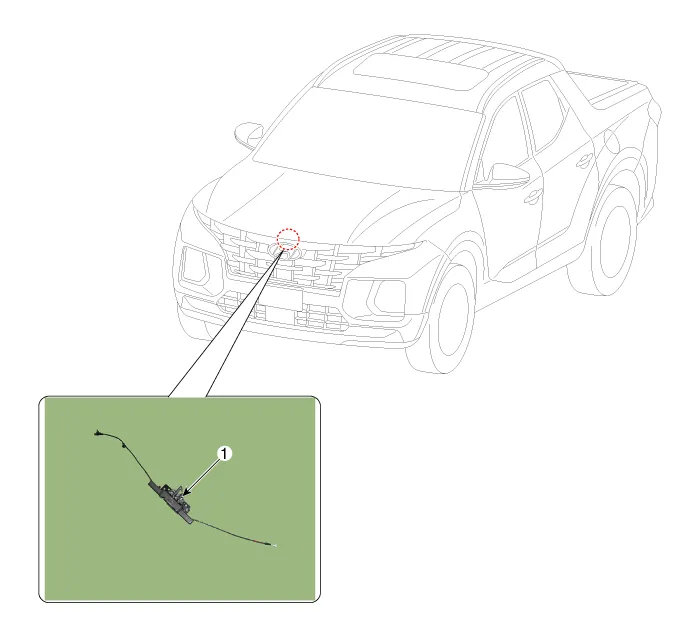

- Component Location

1. Hood Latch Assembly


- Replacement



• Put on gloves to prevent hand injuries

1.Disconnect the negative (-) battery terminal.

2.Remove the front bumper assembly.(Refer to Front Bumper - "Front Bumper Assembly")

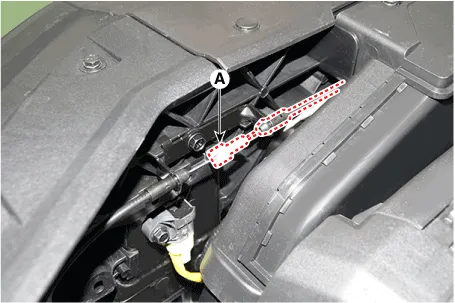

3.Disconnect the hood latch cable (A).

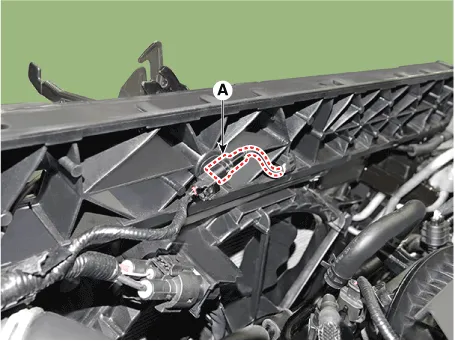

4.Press the rock pin to separate the hood latch connector (A) and disconnect wiring clip.

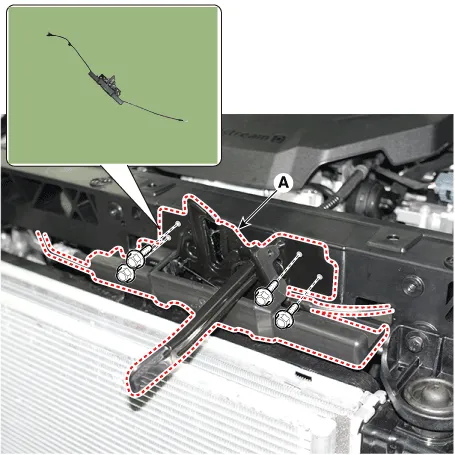

5.Loosen the mounting bolts, remove the hood latch assembly (A).

6.To install, reverse removal procedure.



• Make sure the hood latch release cable is connected properly.

• Make sure the hood locks / unlocks and opens / closes properly.

• Adjust the latch alignment.(Refer yo Hood - Repair procedures")
