Hyundai Santa Cruz: Floor Console / Console Armrest

- Component Location

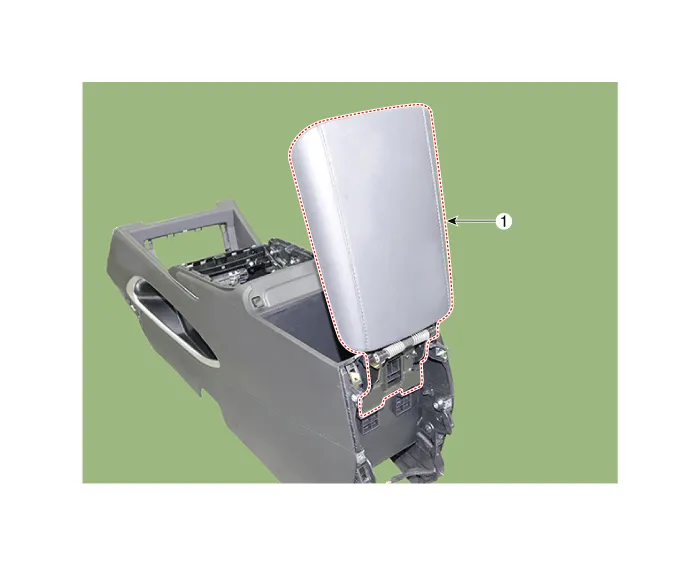

1. Console armrest


- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the trim and panels.

1.Remove the rear console cover.(Refer to Floor Console - "Rear Console Cover")

2.Loosen the mounting screws, remove the rear console duct (A).

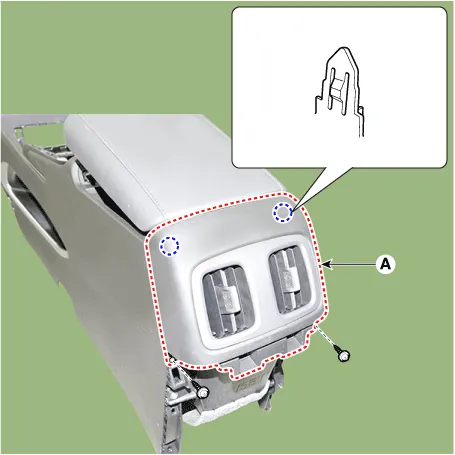

3.Loosen the mounting screws, remove the rear console duct (A).

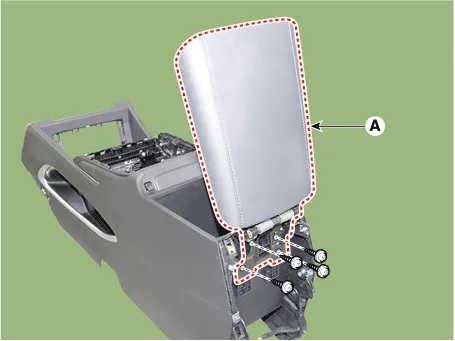

4.Loosen the mounting screws, remove the console armrest (A).

5.To install, reverse removal procedure.



• Replace any damaged clips (or pin-type retainers).
