Hyundai Santa Cruz: Tire Pressure Monitoring System (TPMS) / Check Tire Pressure

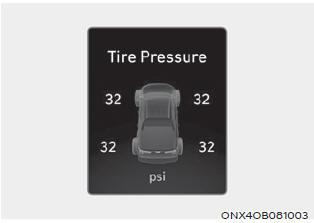

  • You can check the tire pressure in the Warning mode on the cluster.
  • Tire pressure is displayed after a few minutes of driving after initial engine start up.
  • If tire pressure is not displayed when the vehicle is stopped, “Drive to display” message will appear. After driving, check the tire pressure.
  • The displayed tire pressure values may differ slightly from those measured with a tire pressure gauge.
  • You can change the tire pressure measurement units in the User Settings mode on the instrument cluster.
    - psi, kpa, bar
