Hyundai Santa Cruz: Convenient Features / Wipers and Washers

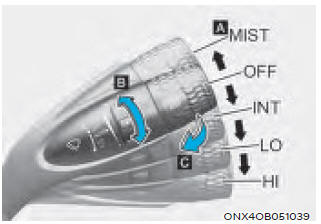

A. Wiper speed control
- MIST – Single wipe
- OFF – Off
- INT – Intermittent wipe
AUTO – Auto control wipe (if equipped) - LO– Low wiper speed
- HI – High wiper speed
B. Intermittent control wipe time adjustment
C. Wash with brief wipes
Welcome System
Welcome system helps keep the driver
visible by turning on vehicle lights when
the driver approaches the vehicle.
Door Handle Lamp
When all the doors are closed and
locked, the door handle lamp wi ...
Windshield Wipers
Operates as follows when the ignition
switch is turned ON.
MIST : For a single wiping cycle,
move the lever up and release
it. The wipers will operate
continuously if the lever is
held in this po ...
