Hyundai Santa Cruz: Engine And Transaxle Assembly / Engine Cover

- Removal and Installation

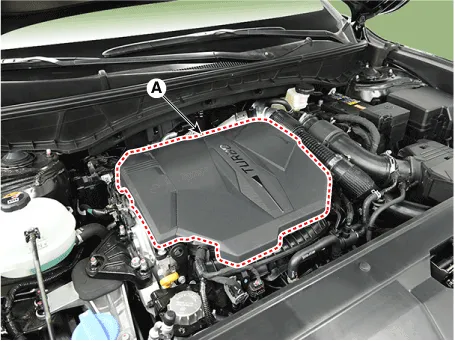

1.Remove the engine cover (A).



• To avoid damage, remove the engine cover on room temperature.

• Do not disengage both front and rear mounting point at the same time.

2.Install in the reverse order of removal.
