Hyundai Santa Cruz: Interior Lights / Welcome System

Welcome system helps keep the driver visible by turning on vehicle lights when the driver approaches the vehicle.

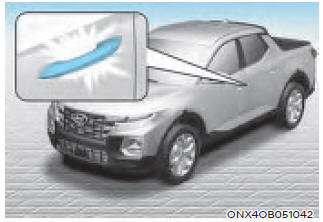

Door Handle Lamp

When all the doors are closed and locked, the door handle lamp will turn on for approximately 15 seconds if any of the below is performed.

- the lamps will turn on when the door lock button is pressed on the smart key.
- the lamps will turn on when the button of the outside door handle is pressed with the smart key in possession. (available with button type)
- the lamps will turn on when the touch sensor on the outside door handle is touched with the smart key in possession. (available with touch sensor type)

You can activate or deactivate Welcome Light function from the User Settings mode on the LCD display.

Headlamp and position lamp

When the headlamp (lamp switch in the headlamp or AUTO position) is on and all doors (and tailgate) are locked and closed, the position lamp and headlamp will come on for 15 seconds when the door unlock button is pressed on the remote key or smart key.

At this time, if you press the door lock or unlock button, the position lamp and headlamp will turn off immediately.

Interior lamp

When the interior lamp switch is in the position and all doors (and tailgate) are closed and locked, the room lamp will come on for 30 seconds if any of the below is performed.

  • When the door unlock button is pressed on the remote key or smart key.
  • When you put your hand in the outside door handle while carrying the smart key.

Top mounted bed lamp and Side mounted bed lamp

Lamps will be activated when a button in cabin is pressed once. (Indicator on button will illuminate when lamps are on.) Or when underbed storage lid is opened.

Lamps will turn Off if any of the following occur:

  • After 10 minutes of being activated.
  • When remote key or smart key lock button is pressed twice.
  • When underfloor storage lid is closed securely.

NOTICE

Bed lamps can only be activated when vehicle is in Park (P) or Neutral (N) with the vehicle speed is below 3.1 mph (5 km/h).

    Glove Box Lamp
    The glove box lamp turns on when the glove box is opened. ...
