Hyundai Santa Cruz: Interior Lights / Glove Box Lamp

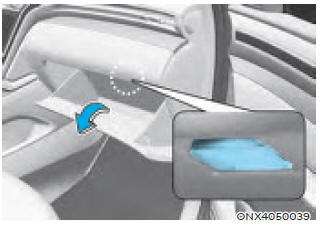

The glove box lamp turns on when the glove box is opened.

    Vanity Mirror Lamp
    Push the switch to turn the light on or off. • : The lamp will turn on if this button is pressed. • : The lamp will turn off if this button is pressed. ...

    Welcome System
    Welcome system helps keep the driver visible by turning on vehicle lights when the driver approaches the vehicle. Door Handle Lamp When all the doors are closed and locked, the door handle lamp wi ...
