Hyundai Santa Cruz: Tail Gate / Tail Gate Trim

- Component Location

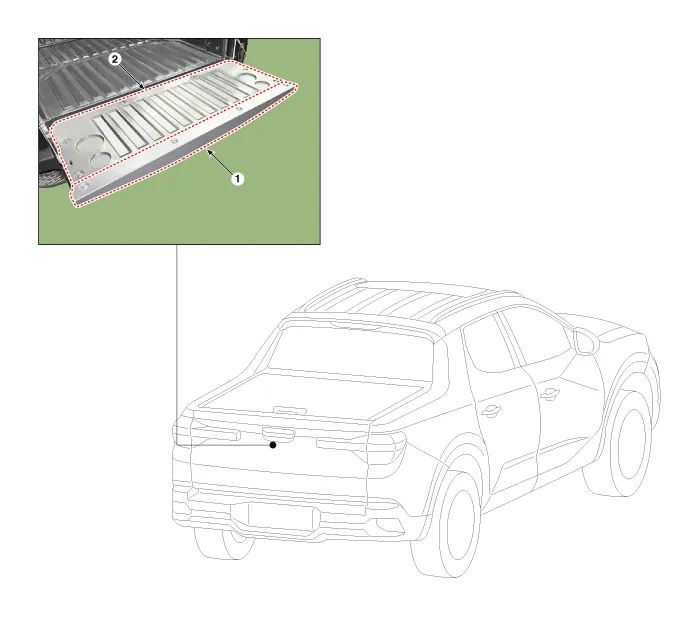

1. Tailgate top rail trim

2. Tailgate bed trim


- Replacement [Tailgate top rail trim]



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

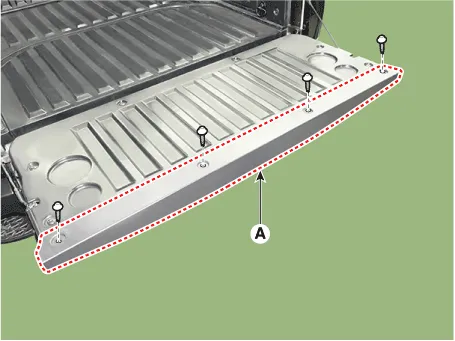

1.Loosen the mounting screws, remove the tailgate top rail trim (A).

Tightening torque :8.8 - 12.7 N.m (0.9 - 1.3 kgf.m, 6.5 - 9.4 lb-ft)

2.To install, reverse removal procedure.



• Replace any damaged clips (or pin-type retainers).

[Tailgate bed trim]



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

1.Remove the tailgate top rail trim.

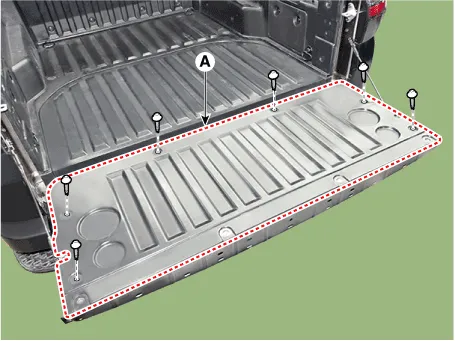

2.Loosen the mounting screws, remove the tailgate bed trim (A).

Tightening torque :8.8 - 12.7 N.m (0.9 - 1.3 kgf.m, 6.5 - 9.4 lb-ft)

3.To install, reverse removal procedure.



• Replace any damaged clips (or pin-type retainers).
