Hyundai Santa Cruz: Cylinder Block / Water Jacket Insert

- Removal and installation

1.Remove the cylinder head.(Refer to the Cylinder Head Assembly - "Cylinder Head")

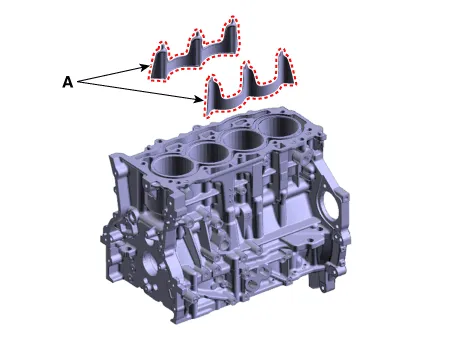

2.Remove the water jacket insert (A).



• When removing the water jacket insert, be careful not to damage the top surface of the cylinder block.

3.Install in the reverse order of removal.
