Hyundai Santa Cruz: Cylinder Block / Components and Components Location

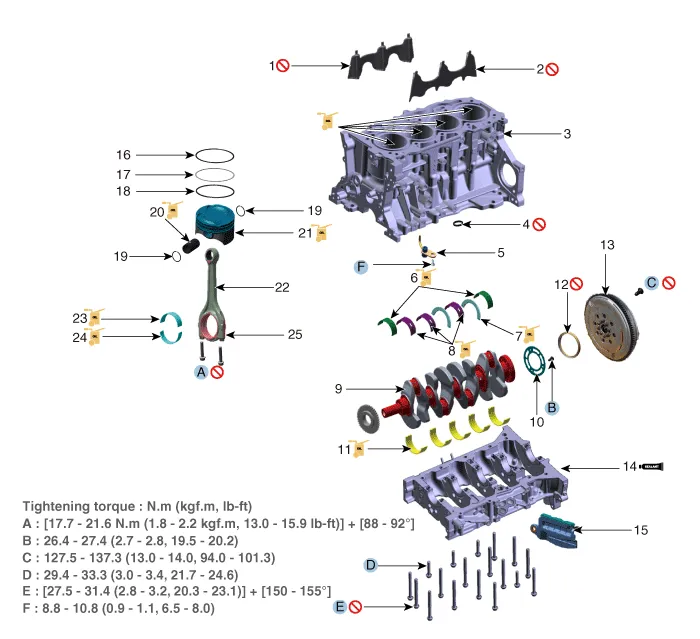

- Components

1. RH water jacket insert
2. LH water jacket insert
3. Cylinder block
4. O-ring
5. Piston cooling oil jet
6. Crankshaft upper bearing (No.1, 5 journal)
7. Thrust bearing
8. Crankshaft upper bearing (No.2, 3, 4 journal)
9. Crankshaft
10. Crankshaft position sensor wheel
11. Crankshaft lower bearing
12. Rear oil seal
13. Fly wheel
14. Lower crankcase
15. Dust cover
16. Piston ring (Top ring)
17. Piston ring (2nd ring)
18. Piston ring (Oil ring)
19. Snap ring
20. Piston pin
21. Piston
22. Connecting rod
23. Connecting rod upper bearing
24. Connecting rod lower bearing
25. Connecting rod bearing cap


    Cylinder Block
    ...

    Water Jacket Insert
    - Removal and installation 1.Remove the cylinder head.(Refer to the Cylinder Head Assembly - "Cylinder Head") 2.Remove the water jacket insert (A).     • When removing the w ...
