Hyundai Santa Cruz: Brake System / Front Disc Brake

- Removal

1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.

2.Remove the front wheel and tire.(Refer to Suspension System - "Wheel")

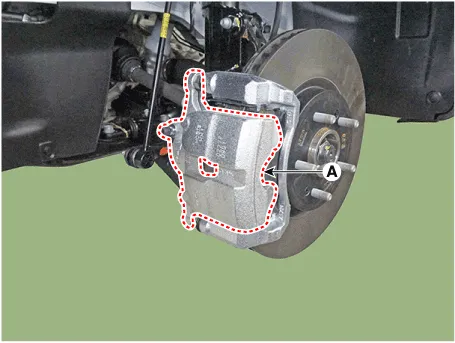

3.Remove the caliper body (A) by loosening the guided rod bolt.

Tightening torque :37.2 - 41.1 N.m (3.8 - 4.2 kgf.m, 27.4 - 30.3 lb-ft)

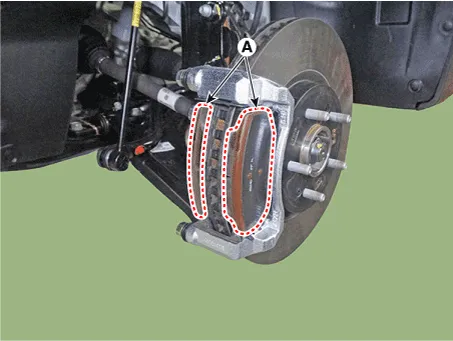

4.Remove the brake pad (A).

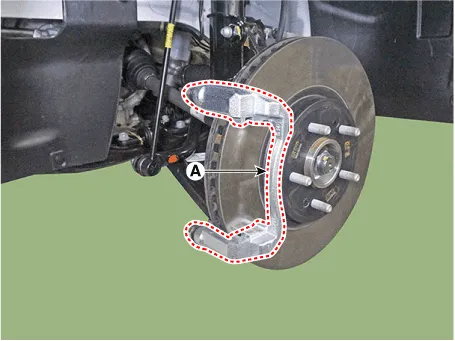

5.Remove the caliper carrier (A) by loosening the caliper mouniting bolts.

Tightening torque :98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

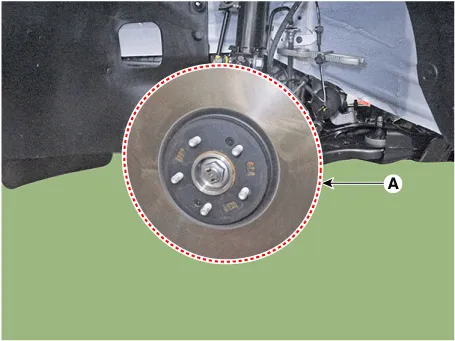

6.Remove the front brake disc (A) by loosening the screws.

Tightening torque :4.9 - 5.8 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)

- Inspection Front Brake Disc Thickness Check

1.Check the brake pads for wear and fade.

2.Check the brake disc for damage and cracks.

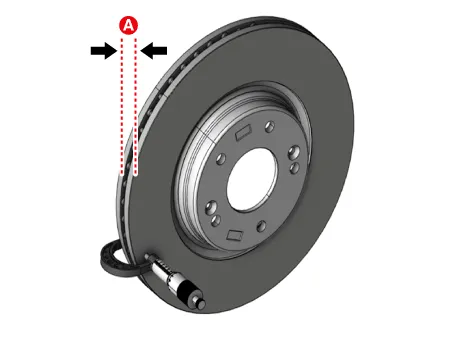

3.Remove all rust and contamination from the surface, and measure the disc thickness (A) at 24 points, at least, of same distance 10 mm (0.39 in) from the brake disc outer circle.

Front brake disc thickness17 inch Standard : 30 mm (1.18 in)17 inch Service limit : 28 mm (1.10 in)Difference in thickness of each measuring part : Less than 0.015 mm (0.0006 in.) (Circumferential direction), 0.015 mm (0.0006 in.) (Radial)

4.If wear exceeds the limit, replace the discs and pad assembly left and right of the vehicle.

Front Brake Disc Runout Check

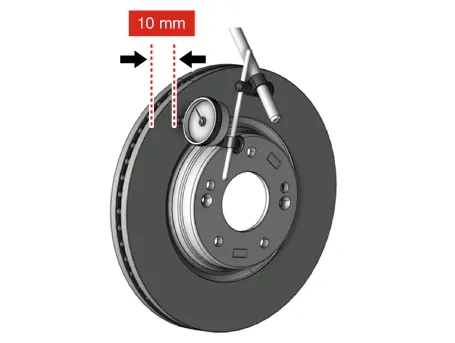

1.Place a dial gauge about 10 mm (0.39 in) from the outer circumference of the brake disc, and measure the runout of the disc.

Brake disc runoutLimit : 0.050 mm (0.002 in.) or less (new one)

2.If the runout of the brake disc exceeds the limit specification, replace the disc, and then measure the runout again.

3.If the runout does not meet the limit specification, remove the disc, turn it 180° and reinstall. Then check the runout of the brake disc again.

4.If the runout cannot be corrected by changing the position of the brake disc, replace the brake disc.

- Installation

1.Installation is the reverse of removal.

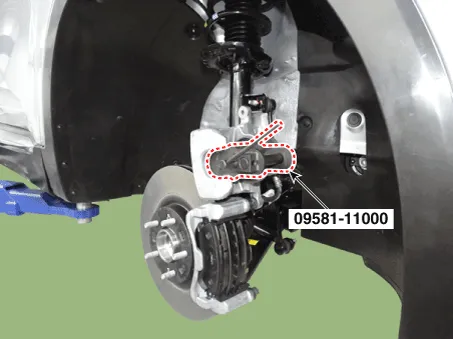

2.Use a SST (09581-11000) when installing the brake caliper assembly.
