Hyundai Santa Cruz: Power Windows / Automatic reverse

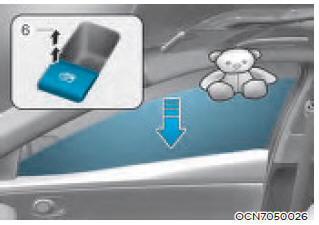

If a window senses any obstacle while it is closing automatically, it will stop and lower approximately 12 in. (30 cm) to allow the object to be cleared.

If the window detects the resistance while the power window switch is pulled up continuously, the window will stop upward movement then lower approximately 1 in. (2.5 cm).

If the power window switch is pulled up continuously again within 5 seconds after the window is lowered by the automatic window reverse feature, the automatic window reverse will not operate.

Information

The automatic reverse feature is only active when the “Auto Up” feature is used by fully pulling up the switch to the second detent.

NOTICE

Do not install any accessories on the windows. The automatic reverse feature may not operate.

WARNING

Make sure body parts or other objects are safely out of the way before closing the windows to avoid injuries or vehicle damage.

Objects less than 0.16 in (4 mm) in diameter caught between the window glass and the upper window channel may not be detected by the automatic reverse window and the window will not stop and reverse direction.

    Resetting the power windows
    If the power windows do not operate normally, the automatic power window system must be reset as follows: 1. Press the ignition switch to the ON position. 2. Close the window and continue pulling ...

    Power window lock button
    The driver can disable the power window switches on the rear passenger doors by pressing the power window lock button. When the power window lock button is pressed: The driver’s master control ...
