Hyundai Santa Cruz: Power Windows / Power window lock button

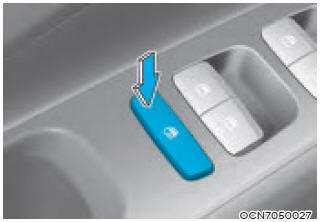

The driver can disable the power window switches on the rear passenger doors by pressing the power window lock button.

When the power window lock button is pressed:

  • The driver’s master control can operate all the power windows.
  • The front passenger’s control can operate the front passenger’s power window.
  • The rear passenger’s control cannot operate the rear passengers’ power window.

WARNING

Do not allow children to play with the power windows. Keep the driver’s door power window lock button in the LOCK position. Serious injury or death can result from unintentional window operation by a child.

NOTICE

  • To prevent possible damage to the power window system, do not open or close two windows or more at the same time. This will also ensure the longevity of the fuse.
  • Never try to operate the main switch on the driver’s door and the individual door window switch in opposite directions at the same time. If this is done, the window will stop and cannot be opened or closed.
    Automatic reverse
    If a window senses any obstacle while it is closing automatically, it will stop and lower approximately 12 in. (30 cm) to allow the object to be cleared. If the window detects the resistance whil ...

    Rear Sliding Window
    Your vehicle is equipped with a rear sliding window behind the rear seats. Opening the rear sliding window Push the lock release lever and slide the rear sliding window to the left. Closing the rea ...
