Hyundai Santa Cruz: Windows / Rear Sliding Window

Your vehicle is equipped with a rear sliding window behind the rear seats.

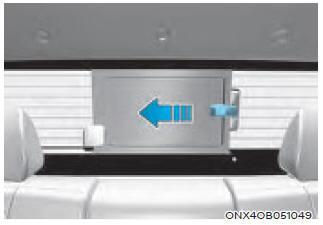

Opening the rear sliding window

Push the lock release lever and slide the rear sliding window to the left.

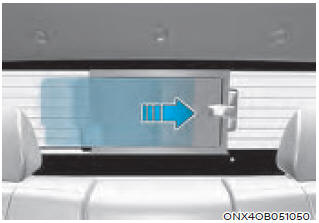

Closing the rear sliding window

Slide the rear sliding window to the right until it is securely locked.

WARNING

  • Make sure heads, hands, arms or any other body parts or objects are out of the way before closing the rear sliding window.
  • Close the rear sliding window to prevent theft when leaving the vehicle.
  • Keep the rear sliding window closed while driving. If the rear sliding window is opened, luggage may be unexpectedly thrown out and cause an accident. Also, exhaust gases may enter the vehicle. This could result in serious injury or death.
