Hyundai Santa Cruz: Sunroof / Sunroof Guide

- Replacement

1.Remove the sunroof sunshade.(Refer to Sunroof - "Sunroof Sunshade")

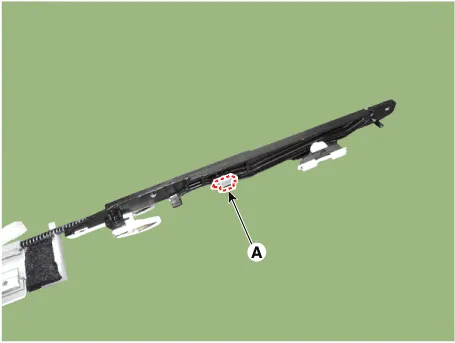

2.Down the slide by pushing it and then remove the drip link (A).

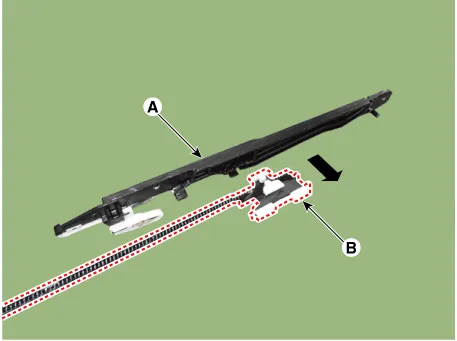

3.Separate the drip link (B) and guide (A).

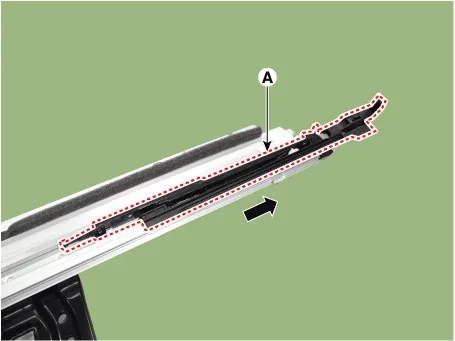

4.Remove the shoe (A).

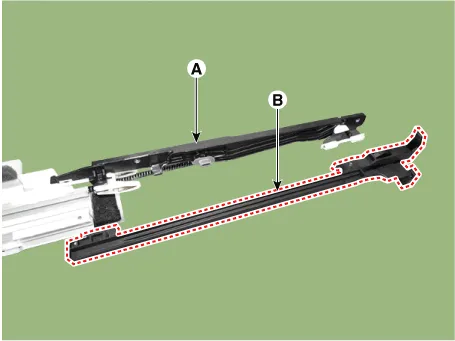

5.Separate the guide (A) and the cable (B) by pushing them in the direction of the arrow.

6.To install, reverse the removal procedure.

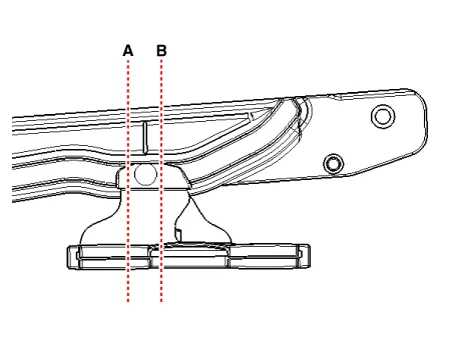

• Place the position between (A) and (B) like the picture.

• Make sure to initialize the motor.
