Hyundai Santa Cruz: Rear Seat Belt / Rear Center Seat Belt Retractor

- Components Location

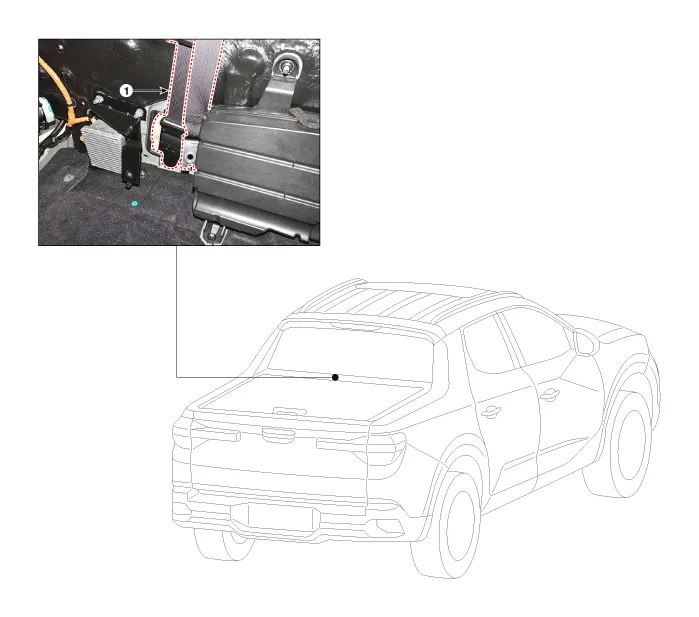

1. Rear center seat belt retractor


- Replacement



• When installing the belt, make sure not to damage the retractor.

1.Remove the patition upper trim.(Refer to Interior Trim - "Patition Upper Trim")

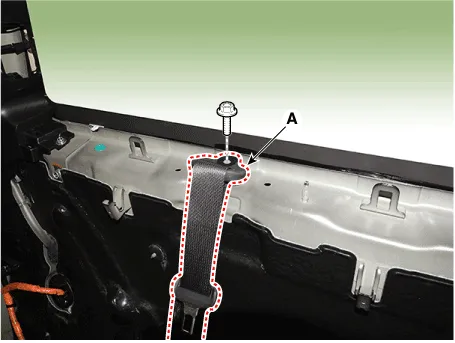

2.Loosen the mounting bolt, remove the rear center seat belt upper anchor (A).

Tightening torque :39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

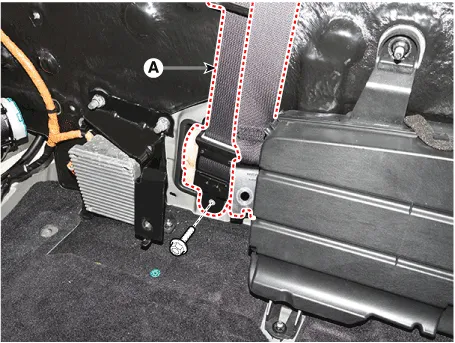

3.Loosen the mounting bolt, remove the rear center seat belt retractor (A).

Tightening torque :39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

4.Install in the reverse order of removal.



• Replace any damaged clips.
