Hyundai Santa Cruz: Rear Seat Belt / Rear Seat Belt Retractor

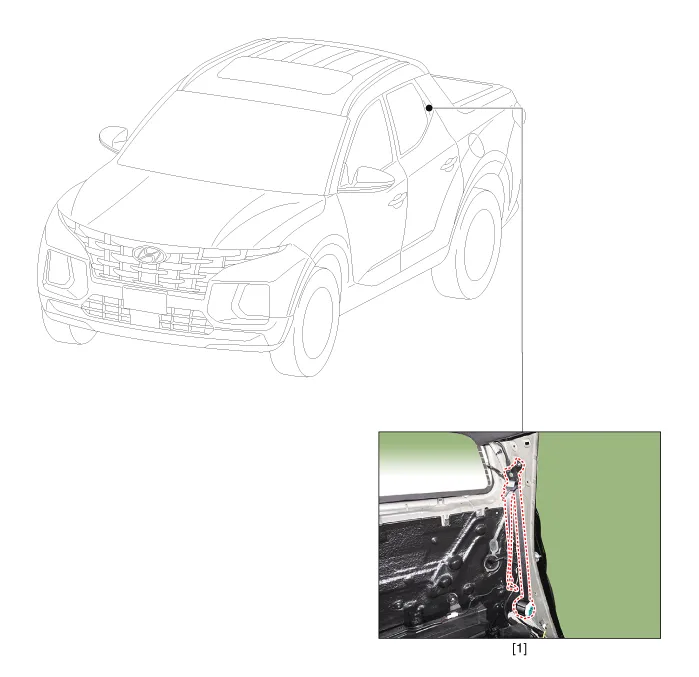

- Components Location

1. Rear seat belt retractor


- Replacement



• When installing the belt, make sure not to damage the retractor.

1.Remove the rear pillar trim.(Refer to Interior Trim - "Rear Pillar Trim")

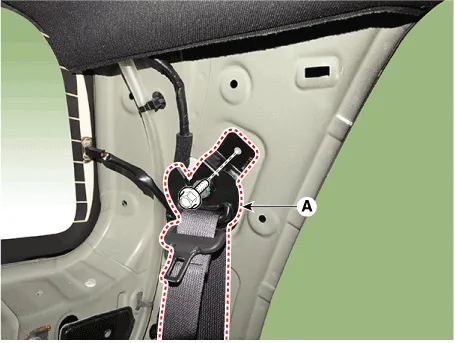

2.Loosen the mounting bolt, remove the rear seat belt upper anchor (A).

Tightening torque :39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

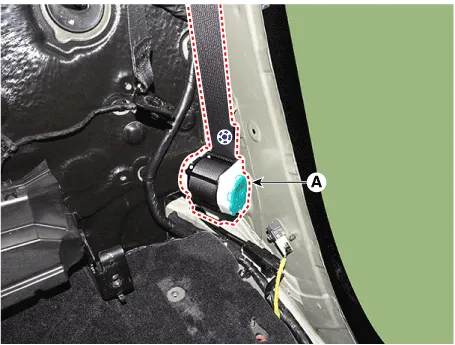

3.Loosen the mounting bolt, remove the rear seat belt retractor (A).

Tightening torque :39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

4.Install in the reverse order of removal.



• Turn the ignition switch ON; the SRS indicator light should turn on for about 6 seconds and then go off.

• Make sure the connector is plugged in properly.

• Replace any damaged clips (or pin-type retainers).

    Rear Seat Belt
    ...

    Rear Center Seat Belt Retractor
    - Components Location 1. Rear center seat belt retractor - Replacement     • When installing the belt, make sure not to damage the retractor. 1.Remove the patition upp ...
