Hyundai Santa Cruz: Seats & Safety System / Seats

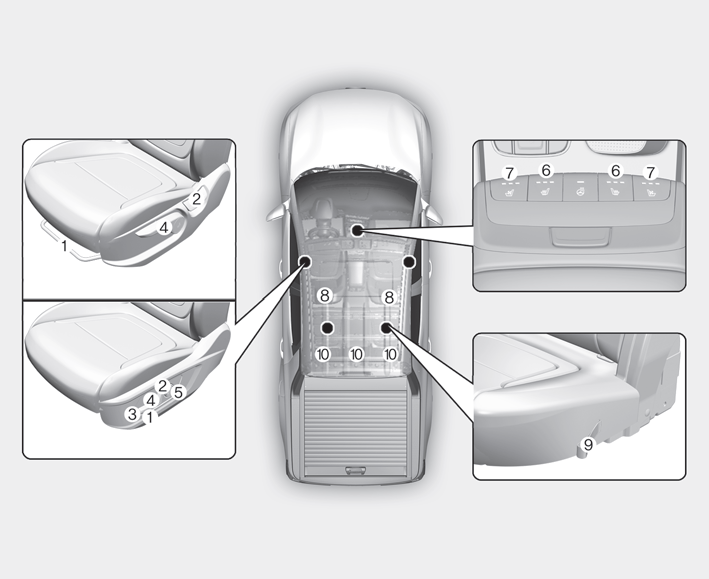

Front seat
(1) Forward and rearward
(2) Seatback angle
(3) Seat cushion angle
(4) Seat cushion height
(5) Lumbar support (Driver’s seat)
(6) Seat warmer
(7) Air ventilation seat*
(8) Head restraint
Rear seats
(9) Seat cushion strap
(10) Head restraint
Important Safety Precautions
You will find many safety precautions
and recommendations throughout this
section, and throughout this manual.
The safety precautions in this section are
among the most important.
Always Wear Your ...
Safety Precautions
Adjusting the seats so that you are sitting
in a safe and comfortable position plays
an important role for the safety of the
driver and passengers, as much as seat
belts and air bags when in an ac ...
