Hyundai Santa Cruz: Interior Trim / Luggage Floor Center Tray

- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the trim and panels.

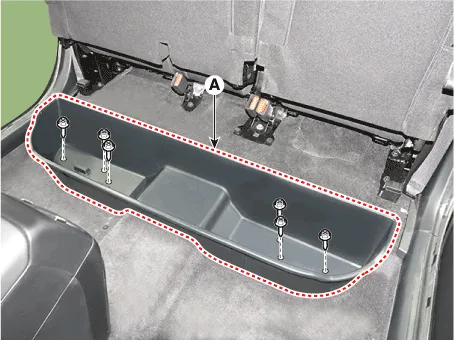

1.Loosen the mounting screws, remove the luggage floor center tray (A).

2.To install, reverse removal procedure.
