Hyundai Santa Cruz: Sunroof / Repair procedures

- Adjustment

Inspect Glass Alignment

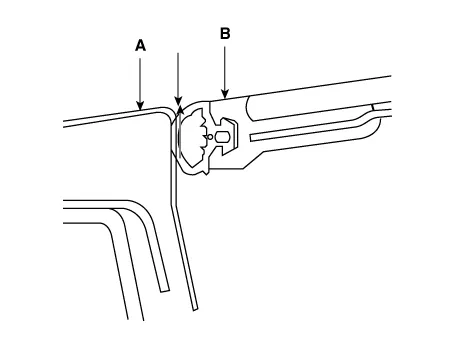

1.Inspect the step height between the roof panel (A) and the glass weatherstrip (B) and then adjust it if necessary.

Alignment adjustment Standard value [mm(in.)](1) Front edge : -1 ~ 0 mm (-0.04 ~ 0 in.)(2) Rear edge : 0 ~ 1 mm (0 ~ 0.04 in.)(3) Side edge : 0 ± 0.5 mm (0 ± 0.02 in.)

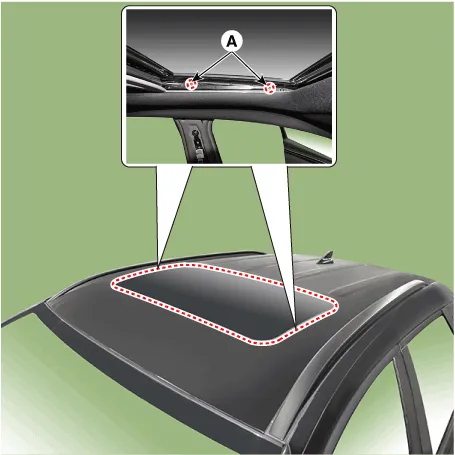

2.Adjust the height of the glass by slighly loosening the screws (A).

When To Initialize The Motor

1.After initial vehicle assembly.

2.If the initial value is erased or damaged because of short power electric discharge during operation.

3.After using the manual handle.

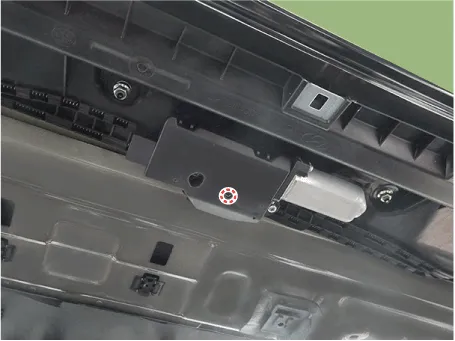

Operating The Sunroof Emergency Handle

1.Use the sunroof emergency handle to close or open the sunroof manually if the sunroof cannot be closed electronically due to motor or controller electrical malfunction.

2.If needed, initialize the sunroof according to the initialization method.Whenever the vehicle battery is disconnected or discharged, or you use the emergency handle to operate the sunroof, you have to reset your sunroof system as follows :

(1)Turn the ignition key to the ON position.

(2)Close the sunroof completely and then release the sunroof control lever.

(3)Press and hold the CLOSE button until the sunroof closed and it has moved slightly and then release the sunroof control lever.

(4)Press and hold the CLOSE button once again until the sunroof does as follows :

• Tilt down → Slide Open → Slide Close

Then release the lever.

(5)Reset procedure of sunroof system is finished.

    Components and Components Location
    - Components 1. Glass panel assembly2. Deflector3. Motor assembly4. Spring base assembly5. Set plate assembly6. Guide assembly7. Frame B assembly8. Seal tape9. Rear drip 10. Stopper11. Sunshade ...

    Sunroof Glass
    - Components Location 1. Sunroof glass - Replacement     • Put on glove to protect your hands. 1.Close the sunroof glass completely by pressing the sunroof switch. ...
