Hyundai Santa Cruz: Sunroof / Components and Components Location

- Components

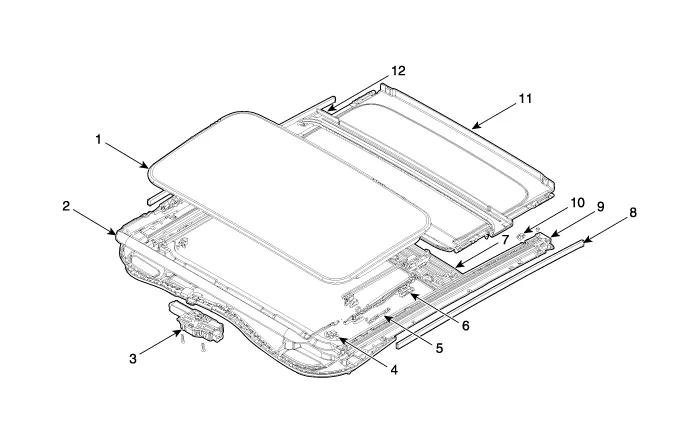

1. Glass panel assembly
2. Deflector
3. Motor assembly
4. Spring base assembly
5. Set plate assembly
6. Guide assembly
7. Frame B assembly
8. Seal tape
9. Rear drip
10. Stopper
11. Sunshade assembly
12. Drip rail


    Sunroof
    ...

    Repair procedures
    - Adjustment Inspect Glass Alignment 1.Inspect the step height between the roof panel (A) and the glass weatherstrip (B) and then adjust it if necessary.Alignment adjustment Standard value [mm( ...
