Hyundai Santa Cruz: Mirror / Outside Rear View Mirror

- Component Location

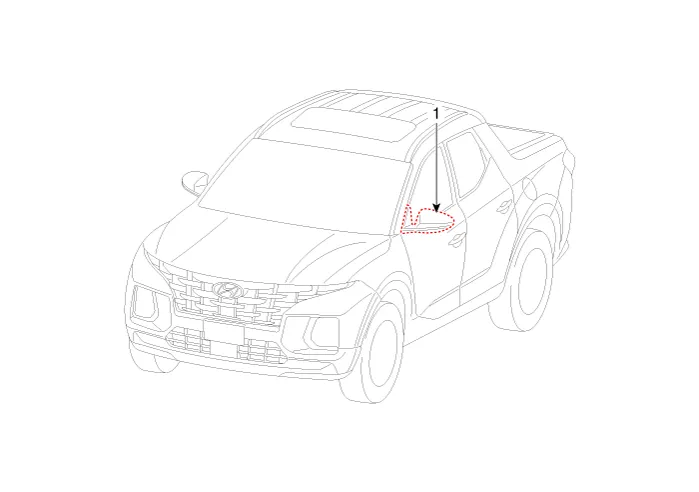

1. Outside rear view mirror


- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

1.Remove the front door trim.(Refer to Front Door - "Front Door Trim")

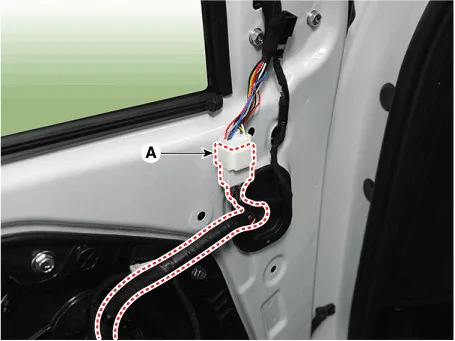

2.Press the lock pin, separate the outside rear view mirror connector (A).

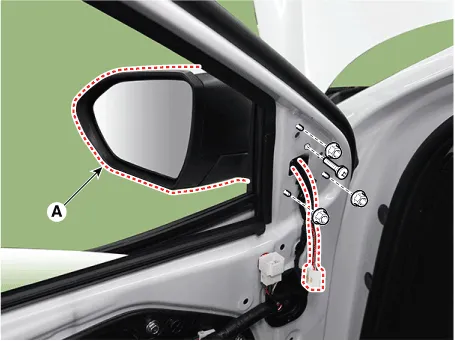

3.Loosen the mounting bolts and clip, remove the outside rear view mirror (A).

Tightening torque :6.9 - 10.8 N.m (0.7 - 1.1kgf.m , 5.1 - 8.0 lb-ft)

4.To install, reverse removal procedure.



• Make sure the connector is connected properly.
