Hyundai Santa Cruz: Front Door / Front Door Belt Outside Weatherstrip

- Replacement

1.Remove the outside rear view mirror.(Refer to Mirror - "Outside Rear Viwe Mirror")

2.Pull down the front door window glass to the lowest level by pressing the power window glass switch.

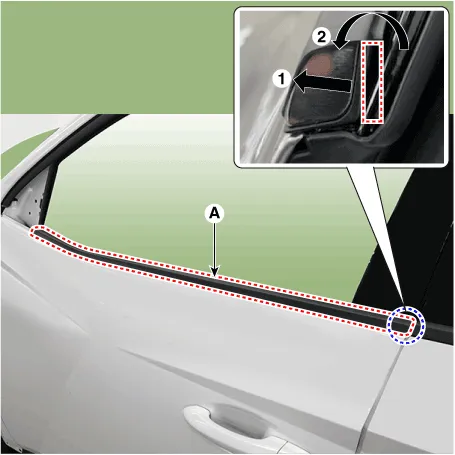

3.Remove the front door belt outside weatherstrip (A).

4.To install, reverse removal procedure.



• Replace any damaged clips (or pin-type retainers).
