Hyundai Santa Cruz: Mirror / Inside Rear View Mirror

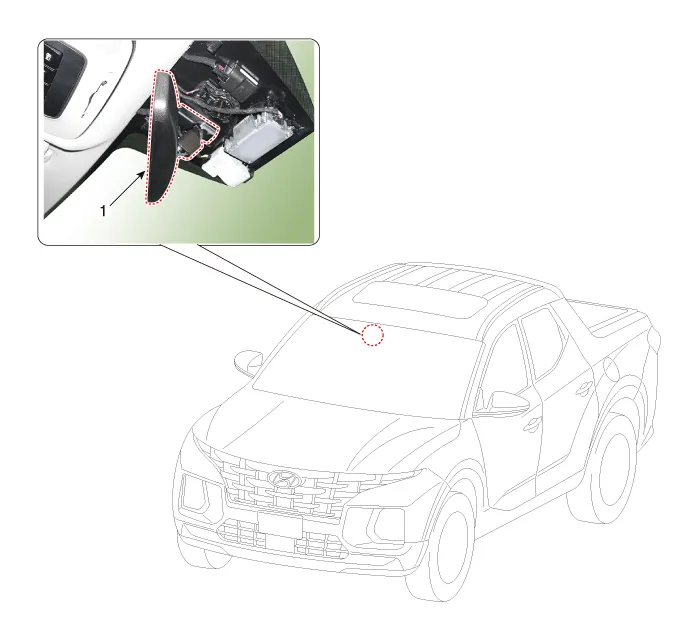

- Component Location

1. Inside rear view mirror


- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

1.Disconnect the negative (-) battery terminal.

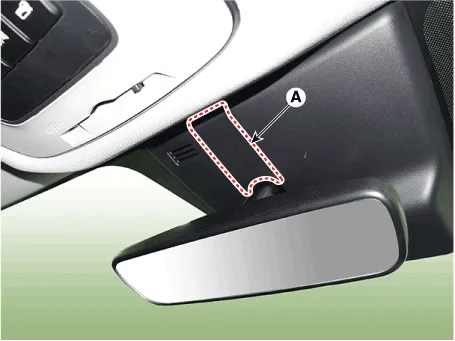

2.Remove the inside rear view mirror cover (A).

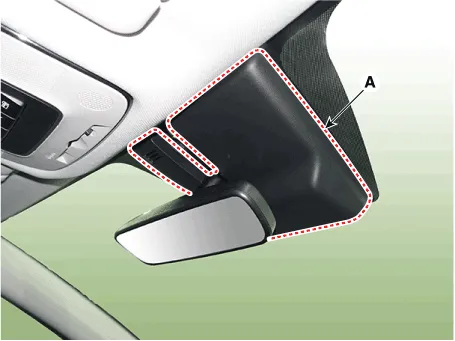

3.Remove the rain sensor cover (A).

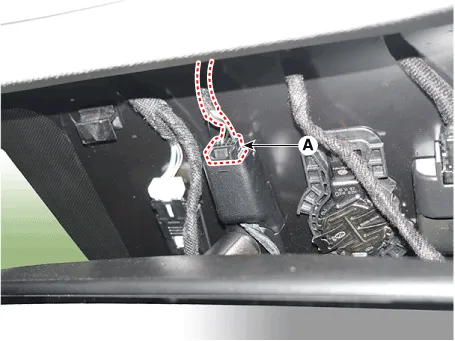

4.Disconnect the inside rear view mirror connector (A).

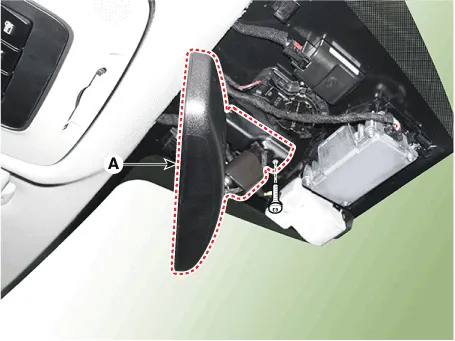

5.Loosen the mounted screws and push the day & night mirror base upward to remove the day & night mirror assembly (A).

6.To install, reverse removal procedure.



• Be careful not to damage the windshield glass.



• Make sure the connector is connected properly.
