Hyundai Santa Cruz: Lighting System / Mood Lamp

- Removal Mood lamp unit

1.Disconnect the negative (-) battery terminal.

2.Remove the crash pad center panel.(Refer to Body - "Crash Pad Center Panel")

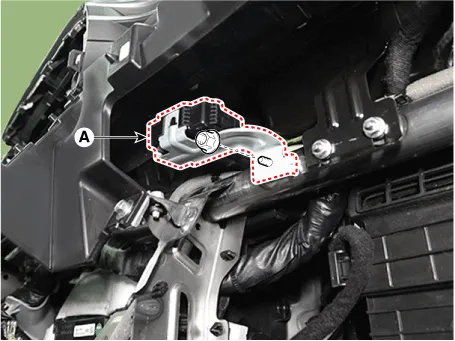

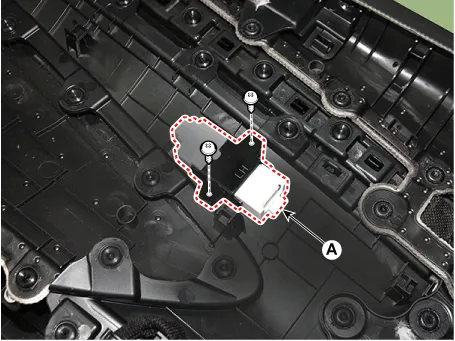

3.Loosen the mounting nut and remove the mood lamp unit (A).

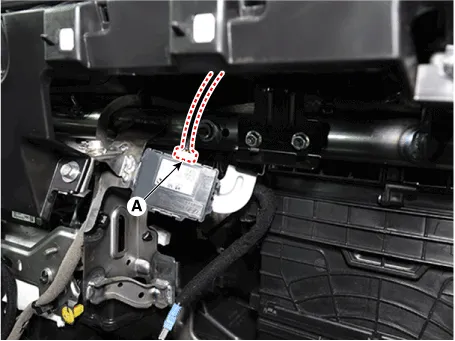

4.Disconnect the mood lamp unit connector (A).

Door mood lamp

1.Disconnect the negative (-) battery terminal.

2.Remove the front door trim.(Refer to Body - "Front Door Trim")

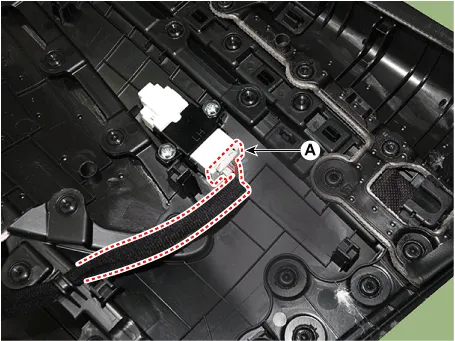

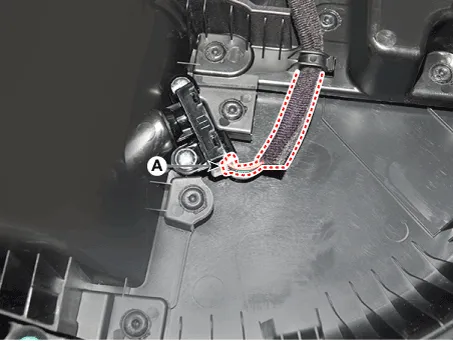

3.Disconnect the door mood lamp connector (A).[Upper]

[Lower]

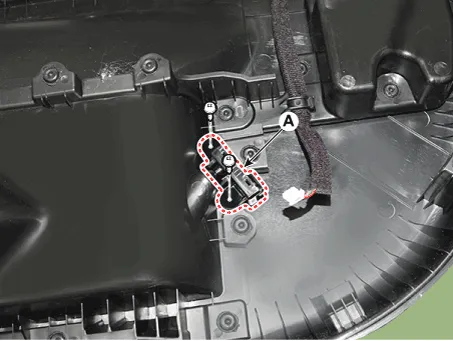

4.Loosen the mounting screws and remove the door mood lamp (A).[Upper]

[Lower]

Crash pad mood lamp

1.Disconnect the negative (-) battery terminal.

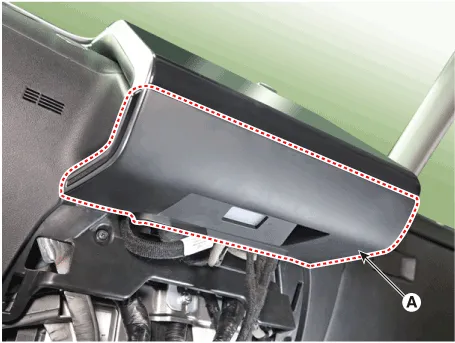

2.Remove the front monitor lower cover (A).

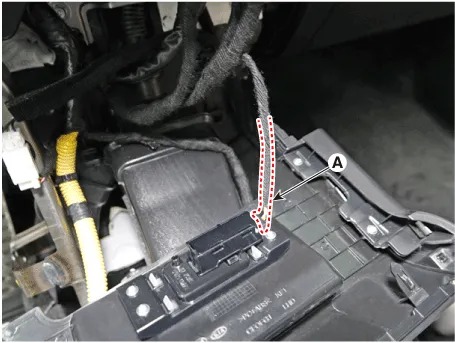

3.Remove the front monitor lower cover after disconnecting the crash pad mood lamp connector (A).

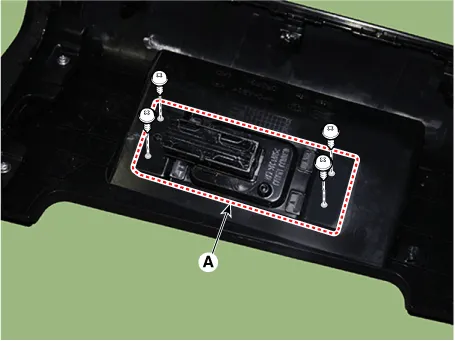

4.Loosen the mounting screws and remove the crash pad mood lamp (A).

- Installation

1.To install, reverse removal procedure.



• Make sure the connector are connected in properly.

• Replace any damaged clips.
