Hyundai Santa Cruz: Lighting System / Side Mounted Bed Lamp (SMBL)

- Removal

1.Disconnect the negative (-) battery terminal.

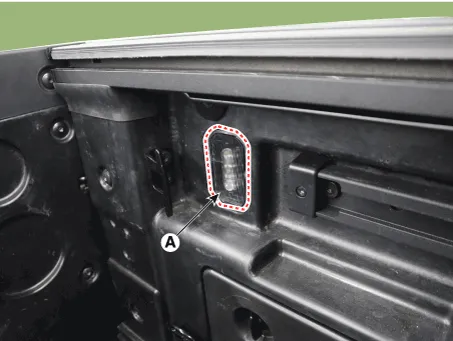

2.Using a flat-tip screwdriver or remover, remove the side mounted bed lamp (A).

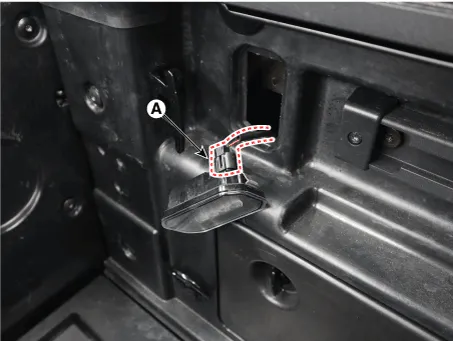

3.Remove the side mounted bed lamp after disconnecting the lamp connector (A).

- Installation

1.Install the side mounted bed lamp after connecting the connector.

2.Connect the negative (-) battery terminal.
