Hyundai Santa Cruz: Windshield Defrosting And Defogging / Manual Climate Control System

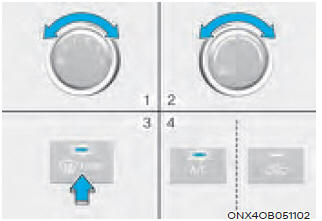

To defog inside windshield

1. Select any fan speed except “0” position.

2. Select the desired temperature.

3. Press the defroster button ().

4. The outside (fresh) air will be selected automatically. Additionally, the air conditioning (if equipped) will automatically operate if the mode is selected to the position.

If the air conditioning and outside (fresh) air position are not selected automatically, press the corresponding button manually.

To defrost outside windshield

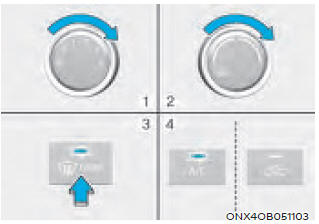

1. Set the fan speed to the highest (extreme right) position.

2. Set the temperature to the extreme hot position.

3. Press the defroster button ().

4. The outside (fresh) air and air conditioning (if equipped) will be selected automatically.
