Hyundai Santa Cruz: Transfer Assembly / Transfer Fluid

- Inspection



• Transfer oil should be inspected and refilled every 60,000 km (40,000 mile) / 4 year.



• Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.(Refer to General Information - "Lift and Support Points")

1.Remove the engine room under cover.(Refer to Engine Mechanical System - "Engine Room Under Cover")

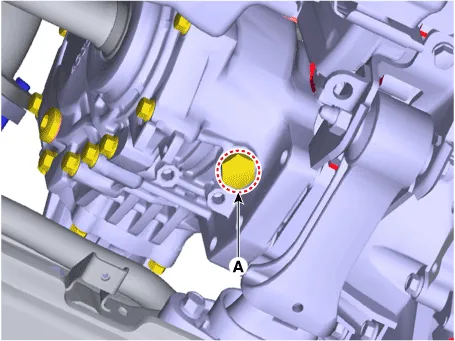

2.Loosen the oil filler plug (A).[A Type]

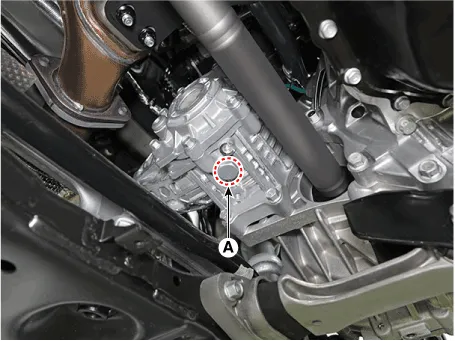

[B Type]

3.Check the oil level.

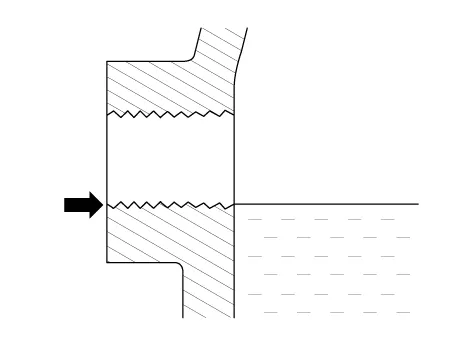

• Oil level must be up to fill the hole, if not, add oil until it runs over.

4.Install the oil filler plug with new gasket.

Tightening torque : 39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

5.Install the engine room under cover.(Refer to Engine Mechanical System - "Engine Room Under Cover")

- Replacement



Change CapacitySpecification
Normal UseSevere UseFilled up to lower filler plug thread level.
[A Type] : Filled up to lower filler plug thread
0.5L ± 0.0225L (0.13 U.S gal, 0.52 U.S qt, 0.44 lmp qt) ± (0.01 U.S gal, 0.03 U.S qt, 0.02 lmp qt)
[B Type] : 0.65 L (0.17 U.S.gal, 0.69 U.S.qt, 0.57 lmp,qt)
API GL-5, SAE75W/85 Hypoid gear oil
(SK HCT-5 75W85 equivalent)
No service required120,000 km
(80,000 miles)

Severe driving conditions

• Driving in dusty, rough roads

• Drivng in mountains areas

• Driving for patrol car, taxi, commercial car or vehicle towing

• Driving over 170Km/h

* Transfer oil should be replaced if the transfer assembly is fall into the water.



• Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.(Refer to General Information - "Lift and Support Points")

1.Remove the engine room under cover.(Refer to Engine Mechanical System - "Engine Room Under Cover")

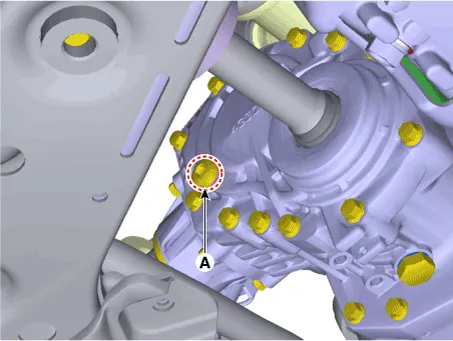

2.Drain the transfer oil after loosening the drain plug (A).[A Type]

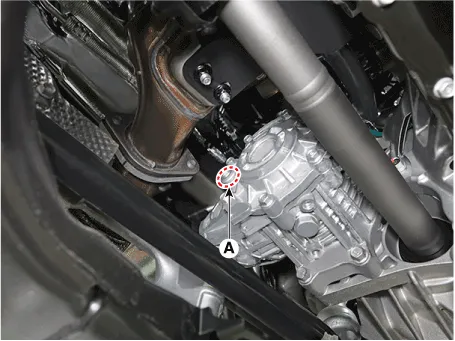

[B Type]

3.Install the drain plug with new gasket.

Tightening torque :39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

4.Refill the transfer specified oil after loosening the filler plug (A).

Specified oil : API GL-5, SAE75W/85 Hypoid gear oil (SK HCT-5 75W85 equivalent)Capacity : Filled up to lower filler plug thread level.[A Type] : 0.5L ± 0.0225L(0.13 U.S gal, 0.52 U.S qt, 0.44 lmp qt) ± (0.01 U.S gal, 0.03 U.S qt, 0.02 lmp qt) [B Type] : 0.65 L (0.17 U.S.gal, 0.69 U.S.qt, 0.57 lmp,qt)

[A Type]

[B Type]

5.Install the filler plug with new gasket.

Tightening torque : 39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

6.Install the engine room under cover.(Refer to Engine Mechanical System - "Engine Room Under Cover")
