Hyundai Santa Cruz: Windshield Defrosting And Defogging / Automatic Climate Control System

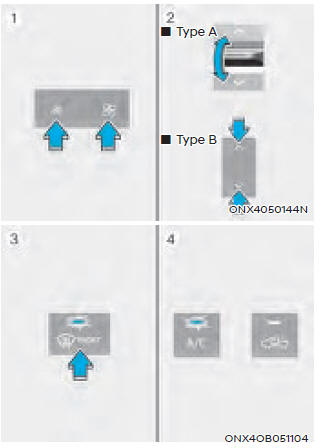

To defog inside windshield

1. Select the desired fan speed.

2. Select the desired temperature.

3. Press the defroster button ().

4. The air-conditioning will turn on according to the detected ambient temperature, outside (fresh) air position and higher fan speed will be selected automatically.

If the air-conditioning, outside (fresh) air position and higher fan speed are not selected automatically, adjust the corresponding button or knob manually.

If the position is selected, lower fan speed is controlled to higher fan speed.

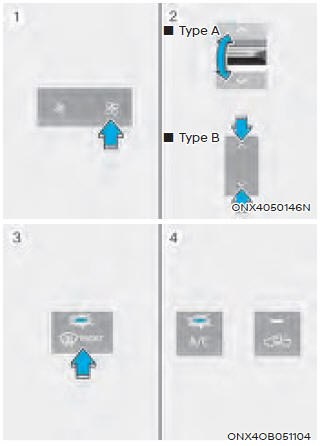

To defrost outside windshield

1. Set fan speed to the highest position.

2. Set temperature to the extreme hot (HI) position.

3. Press the defroster button ().

4. The air-conditioning will turn on according to the detected ambient temperature and outside (fresh) air position will be selected automatically.

If the position is selected, lower fan speed is controlled to higher fan speed.
