Lane Following Assist malfunction

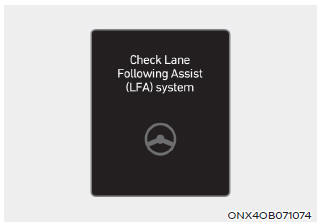

When Lane Following Assist is not
working properly, the ‘Check Lane
Following Assist (LFA) system’ warning
message appears for several seconds,
and the master () warning light
illuminates on the cluster. If this occurs,
have the vehicle inspected by an
authorized HYUNDAI dealer.
Limitations of Lane Following Assist
For more details on Lane Following Assist limitations, refer to “Lane Keeping Assist (LKA)” section in chapter 7.
Information
For more details on Lane Following Assist precautions, refer to “Lane Keeping Assist (LKA)” section in chapter 7.
