Hyundai Santa Cruz: Front Bumper / Front Bumper Beam Assembly

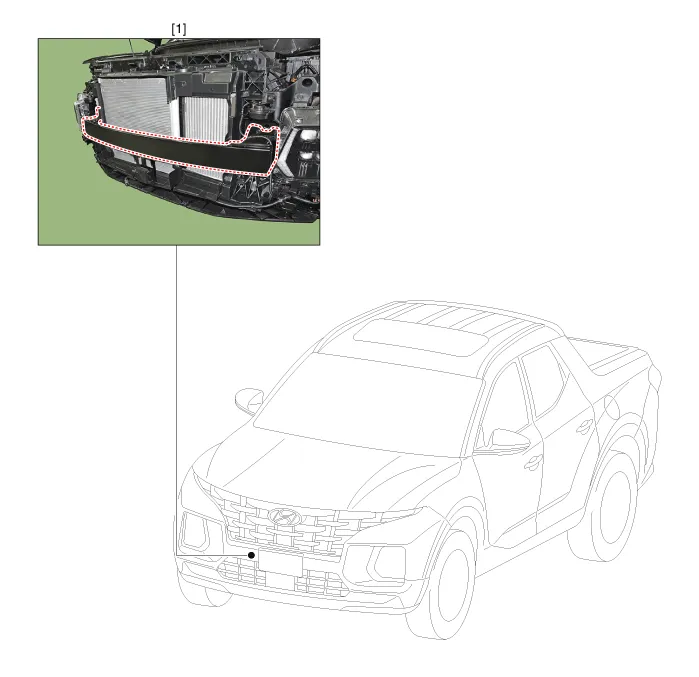

- Component Location

1. Front bumper beam assembly


- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

1.Remove the head lamps.(Refer to Body Electrical System - "Head Lamps")

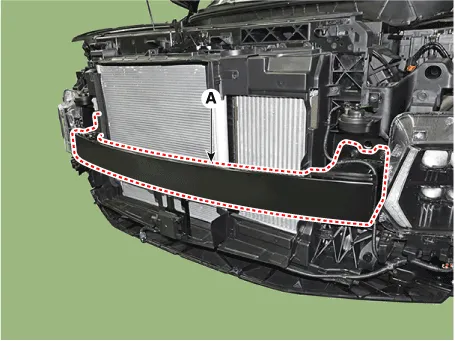

2.Loosen the mounting nuts and bolts, remove the front bumper beam (A).

3.To install, reverse removal procedure.
