Hyundai Santa Cruz: Front Bumper / Radiator Grill

- Component Location

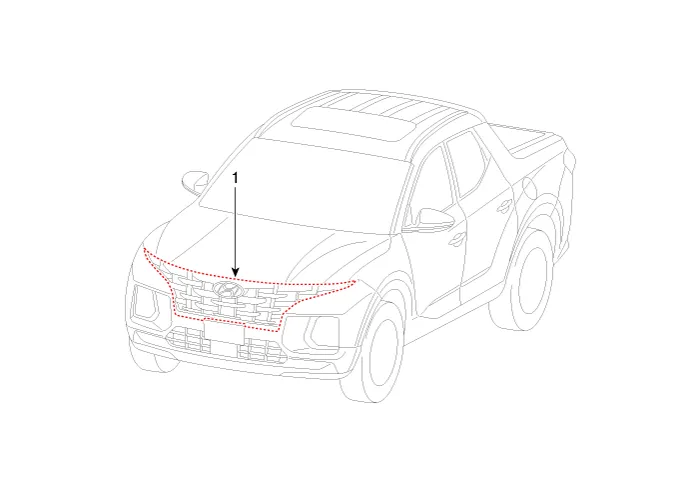

1. Radiator grill


- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the bumper cover and panels.

1.Remove the front bumper assembly.(Refer to Front Bumper - "Front Bumper Assembly")

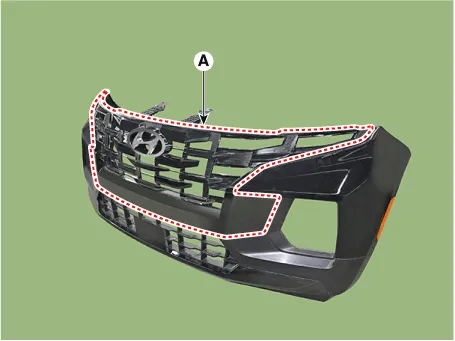

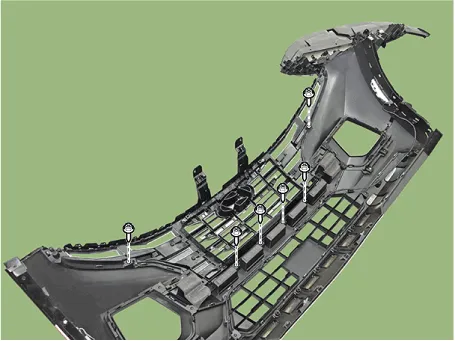

2.Loosen the mounting screws, remove the radiator grill cover assembly (A).

3.Remove the daytime running light (DRL).(Refer to Body Electrical System - "Daytime Running Light (DRL)")

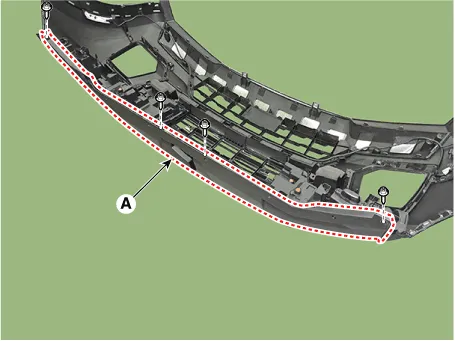

4.Loosen the mounting screws, remove the radiator grill (A).

5.To install, reverse removal procedure.



• Make sure the connector is connected properly.

• Replace any damage clips.
