Hyundai Santa Cruz: Vehicle Information, Consumer Information and Reporting Safety Defects / Engine Compartment

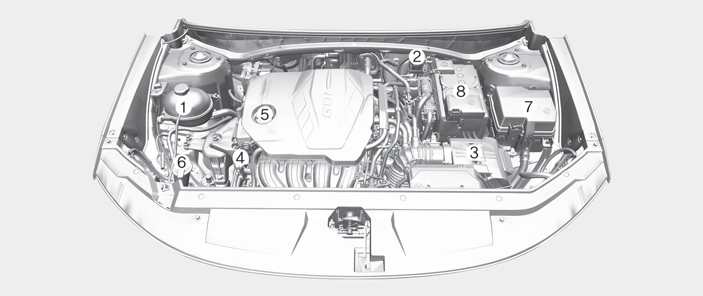

Smartstream G2.5 GDI

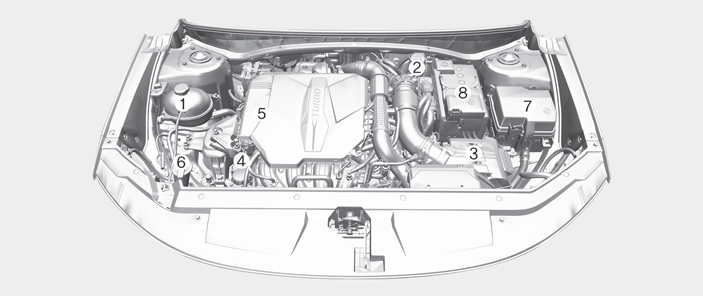

Smartstream G2.5 TGDI

1. Engine coolant reservoir
2. Brake fluid reservoir
3. Air cleaner
4. Engine oil dipstick
5. Engine oil filler cap (2.5 T-GDI’s filler cap is under the engine cover)
6. Windshield washer fluid reservoir
7. Fuse box
8. Battery
