- Adjustment When using a commercially available computerizedwheel alignment equipment to inspect the front wheelalignment, always position the vehicle on a levelsurface with the front wheels facing straight ahead.Prior to inspection, make sure that the frontsuspension and steering system are in normaloperating condition and that the tires are inflated tothe specified pressure.[Front]

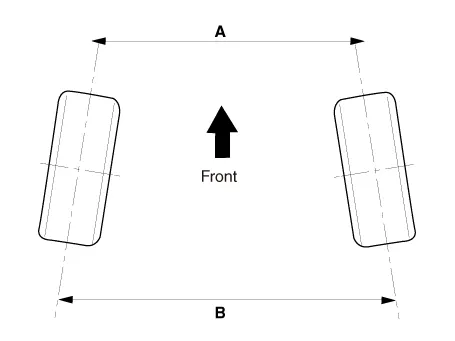

Toe

ToeTotal : 0.1 ˚ ± 0.2 ˚ Individual : 0.05˚ ± 0.1˚

ItemDescription
A-B < 0Positive
(+) toe (toe in)
A-B > 0Negative
(-) toe (toe out)

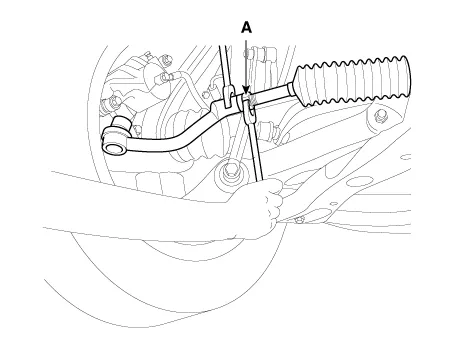

Tightening torque :49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb-ft)

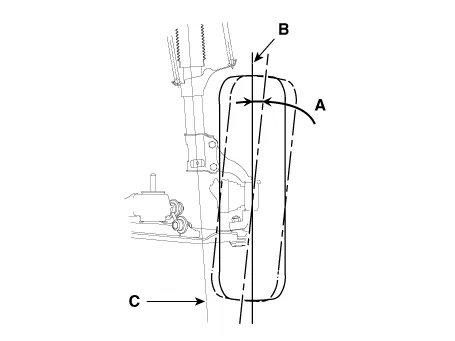

Camber Camber refers to the tilt of the center of the wheel.

Camber angle : -0.5˚ ± 0.5˚

ItemDescription
APositive
camber angle
BTrue
vertical
CStrut
centerline

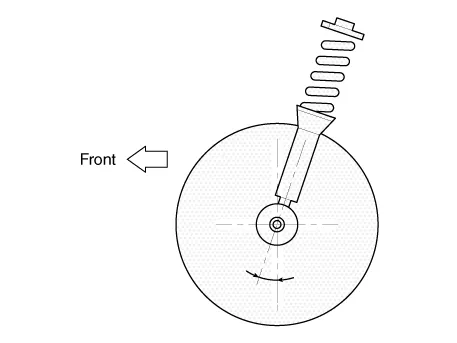

Caster Caster is pre-set at the factory and doesn't need to be adjusted. If the caster is not within the standard value, replace the bent or damaged parts.

Caster : 4.26˚ ± 0.5˚

[Rear]

Toe

ToeTotal : 0.12˚ ± 0.1 ˚Individual : 0.06˚ ± 0.1˚

Camber

Camber angle : -0.75° ± 0.5°

    Wheel
    - Removal 1.Remove the rear wheel and tire (A).     • Be careful not to damage the hub bolts when removing the rear wheel and tire (A). [Front] [Rear] - Installation ...
