Hyundai Santa Cruz: Vehicle Information, Consumer Information and Reporting Safety Defects / Instrument Panel Overview

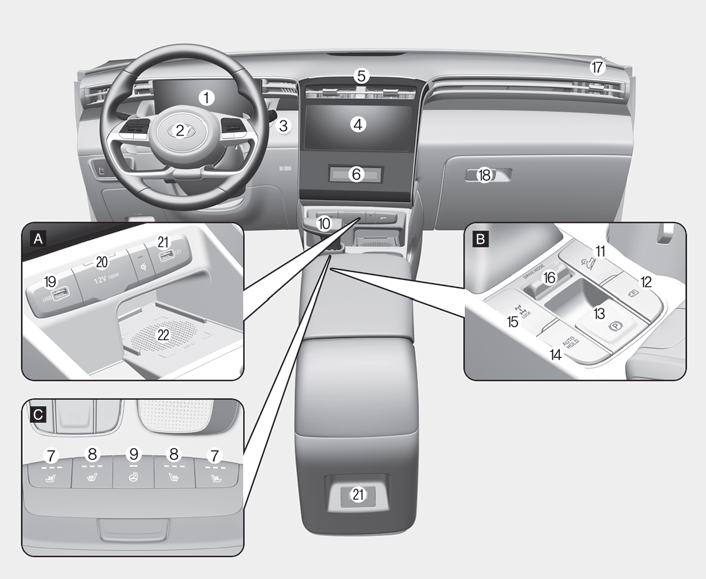

1. Instrument cluster
2. Driver’s front air bag
3. Key ignition switch/Engine Start/Stop button
4. Infotainment system
5. Hazard warning lamp switch
6. Climate control system
7. Air ventilation seat
8. Seat warmer
9. Heated steering wheel
10. Transmission shift lever
11. DBC button
12. Parking/View button
13. EPB (Electronic Parking Brake) switch
14. Auto Hold switch
15. AWD lock button
16. Drive mode switch
17. Passenger’s front air bag
18. Glove box
19. USB port
20. Power outlet
21. USB charger
22. Wireless charging system pad

    Interior Overview
    1. Inside door handle 2. Power window switches 3. Power window lock button 4. Outside rearview mirror control switch 5. Driver door lock switch 6. Instrument panel illumination control switch 7. B ...

    Engine Compartment
    Smartstream G2.5 GDI Smartstream G2.5 TGDI 1. Engine coolant reservoir 2. Brake fluid reservoir 3. Air cleaner 4. Engine oil dipstick 5. Engine oil filler cap (2.5 T-GDI’s filler cap is under t ...
