Hyundai Santa Cruz: Fuel Delivery System / Accelerator Pedal

- Removal

1.Turn the ignition switch OFF and disconnect the battery (-) terminal.

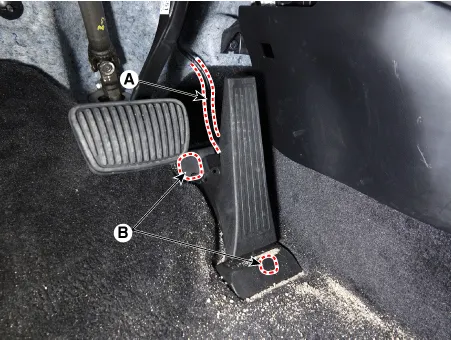

2.Disconnect the accelerator position sensor connector (A).

3.Remove the mounting cap (B).

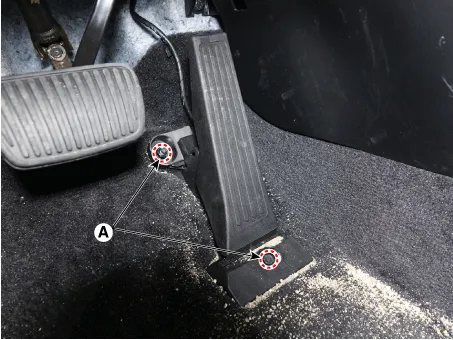

4.Remove the accelerator pedal module from the vehicle after loosening the mounting bolt (A).

Tightening Torque :8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

- Installation

1.Install in the reverse order of removal.
