Hyundai Santa Cruz: Fuel Delivery System / Filler-Neck Assembly

- Removal



• Be careful not to damage the parts located under the vehicle (floor under cover, canister, fuel tank) when raising the vehicle using the lift.(Refer to General Information - "Lift and Support Points")

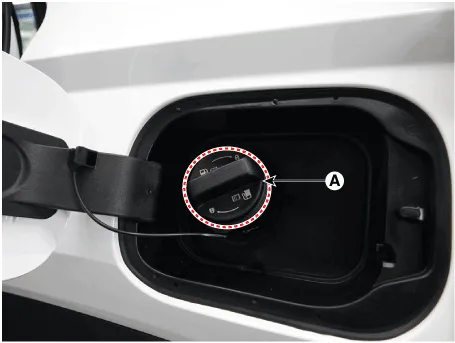

1.Open the fuel filler cap (A) by turning it in the counterclockwise.

2.Lift the vehicle.

3.Remove the rear-left wheel guard.(Refer to Body (Interior and Exterior) - "Rear Wheel Guard")

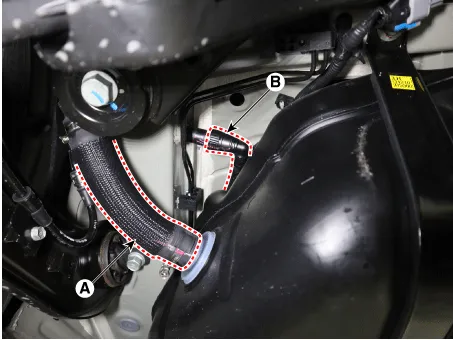

4.Separate the fuel filler hose (A).

5.Disconnect the vent hose quick-connector (B).

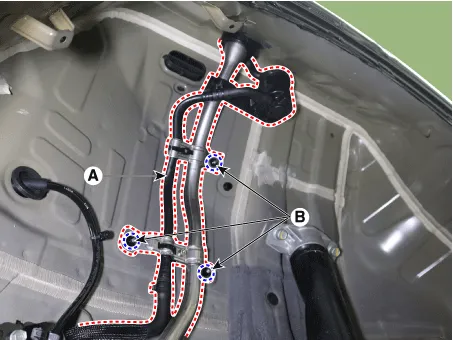

6.Remove the filler-neck assembly (A) after loosening the mounting nut (B).

Tightening Torque :7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

- Installation

1.Install in the reverse order of removal.

    Fuel Line
    - Removal Low Pressure Fuel Line [Low Pressure Delivery Pipe ↔ Fuel Tank] 1.Release the residual pressure in fuel line.(Refer to Fuel Delivery System - "Release Residual Pressure in Fuel Line") ...

    Accelerator Pedal
    - Removal 1.Turn the ignition switch OFF and disconnect the battery (-) terminal. 2.Disconnect the accelerator position sensor connector (A). 3.Remove the mounting cap (B). 4.Remove the acc ...
