Hyundai Santa Cruz: AC Inverter System / AC Inverter Unit

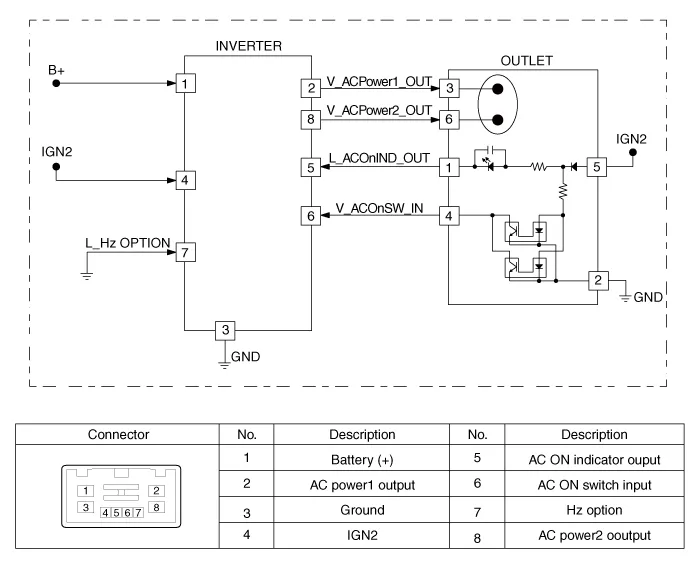

- Components

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the rear seat assembly.(Refer to Body - "Rear Seat Assembly")

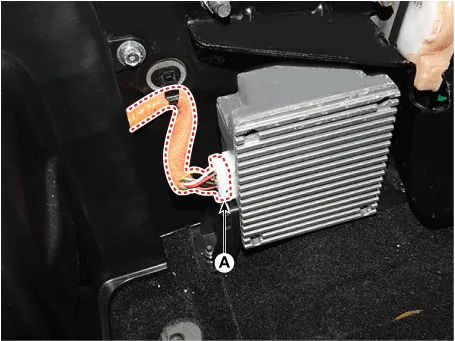

3.Disconnect the AC inverter unit connector (A).

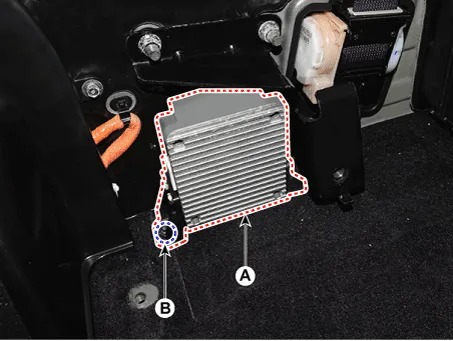

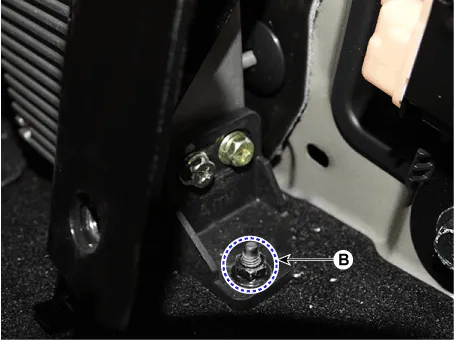

4.Loosen the mounting nuts (B) and remove the AC inverter unit (A).

- Installation

1.Install the AC inverter unit.

2.Install the rear seat assembly.

3.Connect the negative (-) battery terminal.



– Before starting repair work, turn off the engine and AC inverter.

– You may get electrocuted if you work with the AC inverter on.

– You may get electrocuted if you work on the AC inverter with you hands wet.

    Specifications
    - Specification ItemSpecification Rated VoltageDC 12.5V Operating voltageDC 12.2 - 15.3V Operating temperature-30°C to 75°C Output voltageAC 103.5 -126.5 V (rms) Output frequency60 ± 6 ㎐ ...

    AC Inverter Oultet
    - Components - Removal 1.Disconnect the negative (-) battery terminal. 2.Open the bed side trim tray (A). 3.Loosen the mounting screws and remove the AC inverter power outlet (A). 4 ...
