Hyundai Santa Cruz: AC Inverter System / AC Inverter Oultet

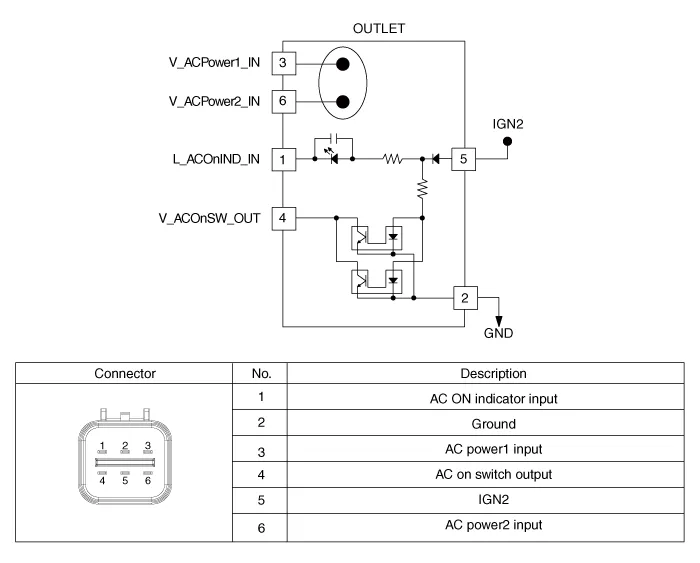

- Components

- Removal

1.Disconnect the negative (-) battery terminal.

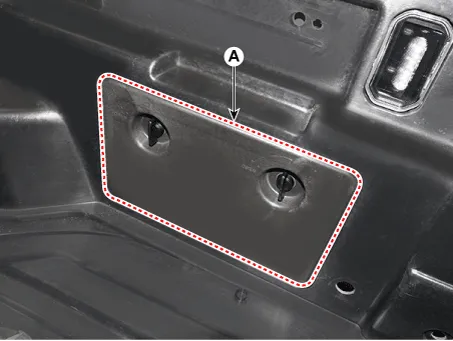

2.Open the bed side trim tray (A).

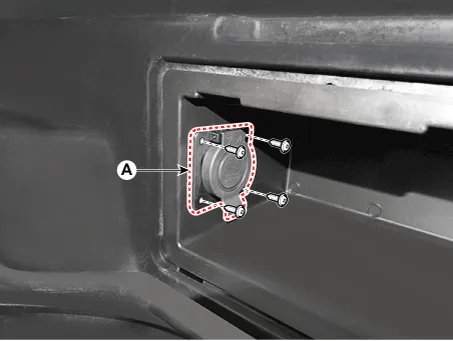

3.Loosen the mounting screws and remove the AC inverter power outlet (A).

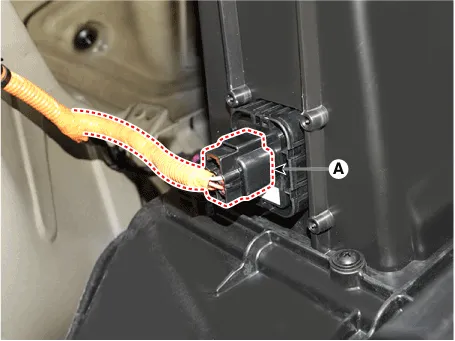

4.Disconnect the AC inverter power outlet connector (A).

- Installation

1.Install the AC inverter power outlet.

2.Connect the negative (-) battery terminal.

    AC Inverter Unit
    - Components - Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the rear seat assembly.(Refer to Body - "Rear Seat Assembly") 3.Disconnect the AC inverter unit connector ...
