Hyundai Santa Cruz: Roof Trim / Sunvisor

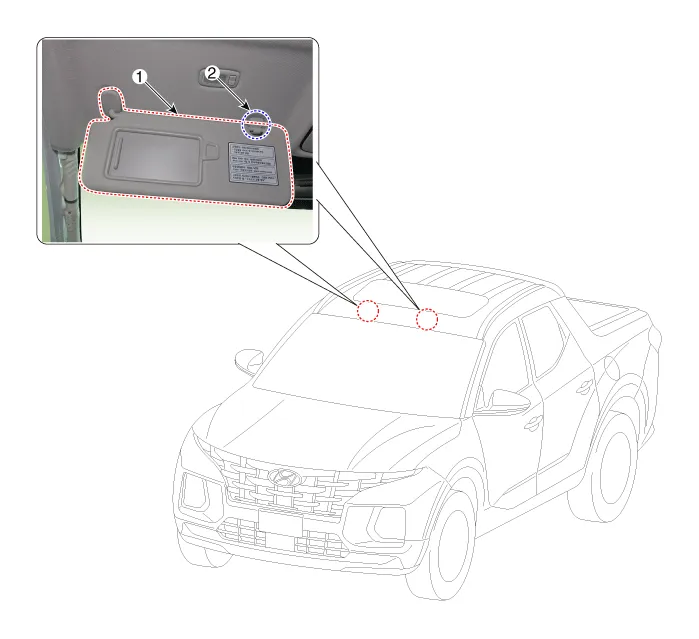

- Component Location

1. Sunvisor
2. Retainer


- Replacement [Sunvisor]

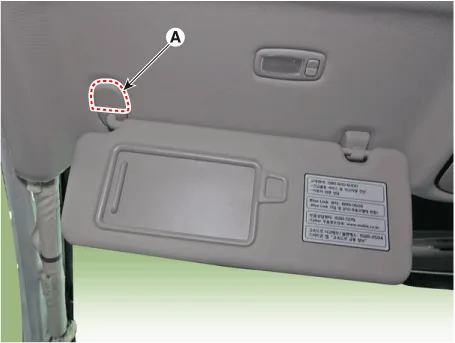

1.Remove the sunvisor pivot cover (A).

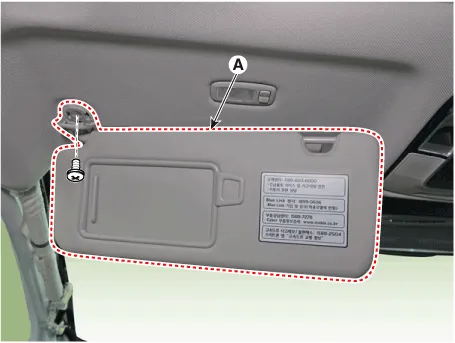

2.Loosen the mounting screw and remove the sunvisor (A).

3.To install, reverse removal procedure.

[Retainer]

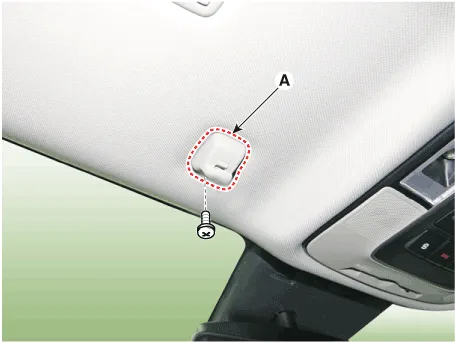

1.Loosen the mounting screws and remove the retainer (A).

2.To install, reverse removal procedure.
