Hyundai Santa Cruz: Roof Trim / Assist Handle

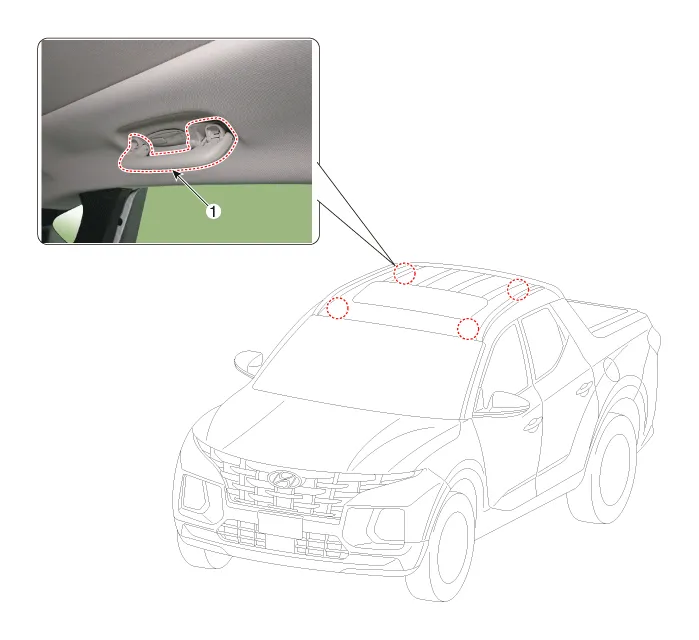

- Component Location

1. Assist handle


- Replacement

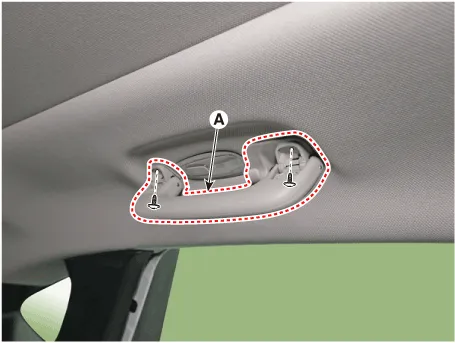

1.After lifting up the assist handle caps and loosening the mounting screws, remove the assist handle (A).

2.To install, reverse removal procedure.
