Hyundai Santa Cruz: Sunroof / Sunshade
.jpg)

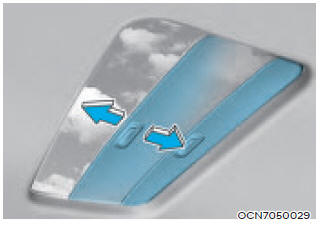

Use the sunshade to block direct sunlight coming through the sunroof glass.
Open or close the sunshade by hand.
Information
The sunshade opens automatically when the sunroof glass is opened, but the sunshade does not close automatically when the sunroof glass is closed. Also, only the sunshade cannot be closed when the sunroof glass is opened.
NOTICE
Do not pull the sunshade up or down, or apply excessive force as such action may damage the sunshade or cause it to malfunction.
