Hyundai Santa Cruz: Motor Driven Power Steering / Steering Gear Box

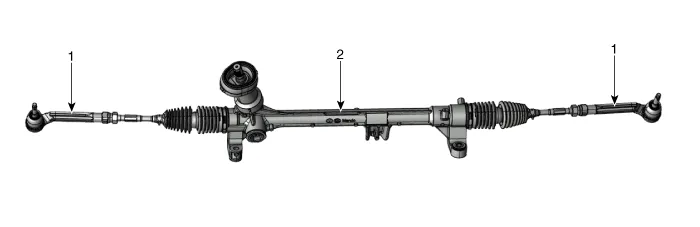

- Components

1. Tie rod end
2. Steering gear box


- Removal



• When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, fuel filter, fuel tank, canister).(Refer to General Information - "Lift and Support Points")

1.Loosen the front wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.

2.Remove the front wheel and tire.(Refer to Suspension System - "Wheel")

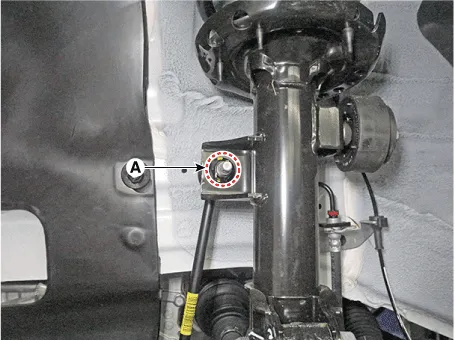

3.Remove the stabilizer link bar link from the front strut after loosening the mounting nut (A).

Tightening torque :98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)



• When loosening the nut, fix the outer hexagon of stabilizer bar link.

• Be careful not to damage the stabilizer link boots.

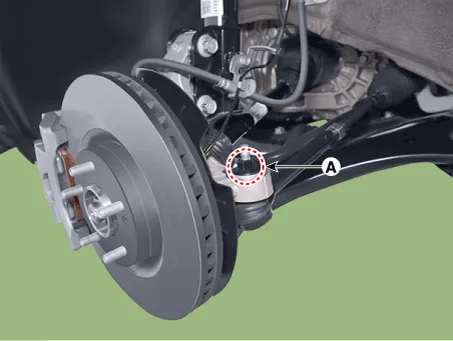

4.Loosen the tie rod end ball joint nut (A).

Tightening torque :98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb-ft)

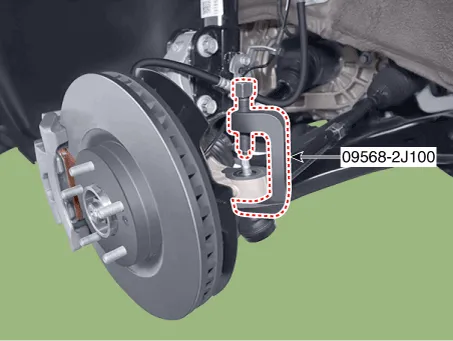

5.Remove the tie rod end ball joint using the SST (09568-2J100).

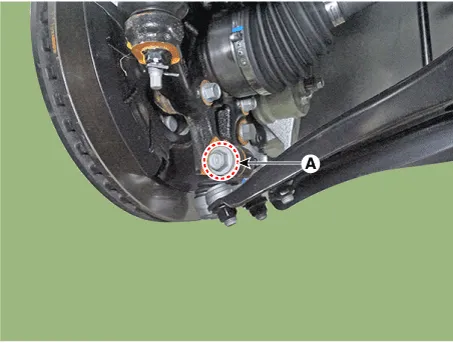

6.Loosen the front lower arm mounting bolt and nut (A).

Tightening torque :98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb-ft)

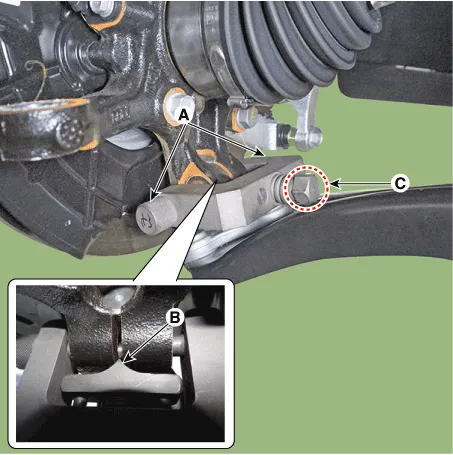

7.Remove the lower arm from the knuckle by using the SST (09568-4R100).

(1)Install the support bolt (A) from lower arm bolt hole.

(2)Install the support body (B) from front axle.

(3)Tighten the bolt (C).

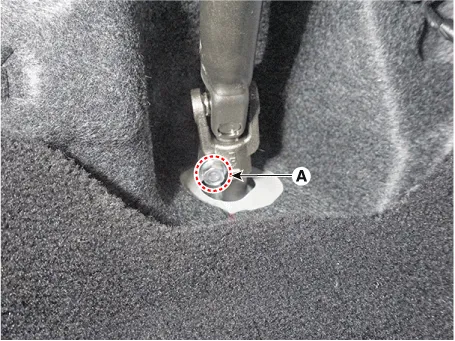

8.Separate the universal joint from the steering gear box after loosening the universal joint mounting bolt (A).

Tightening torque :49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb-ft)



• Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable.

• When mounting, securely insert the universal joint into the steering gear box pinion shaft.

• Do not reuse the universal joint bolt.

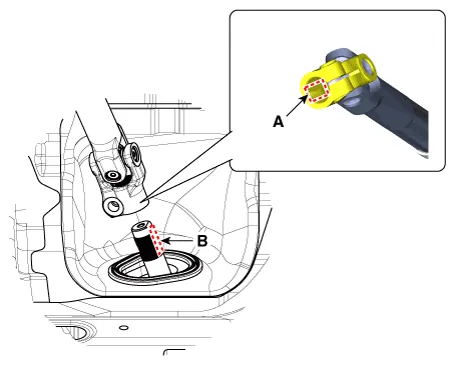

• Install by aligning the machining surface (A) of the universal joint and the machining surface (B) of the steering gearbox pinion shaft.

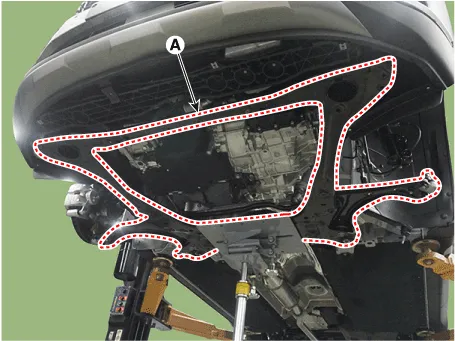

9.Remove the under cover.(Refer to Engine Mechanical System - "Engine Room Under Cover")

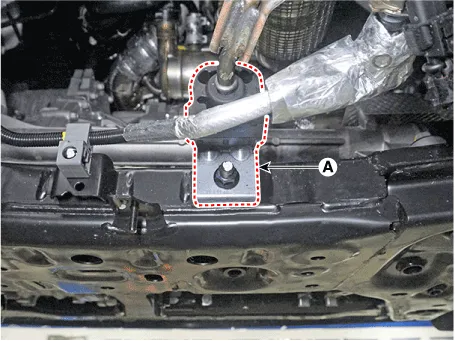

10.Remove the muffler rubber hanger (A) from the sub frame after loosening the mounting nut.

Tightening torque :19.6 - 25.5 N.m (2.0 - 2.6 kgf.m, 14.5 - 18.8 lb-ft)

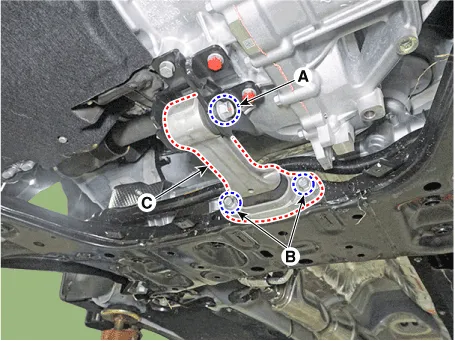

11.Remove the roll rod bracket (C) after loosening the bolt (A), (B).

Tightening torque :(A) : 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)(B) : 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)



• Set a transmission jack for safety.

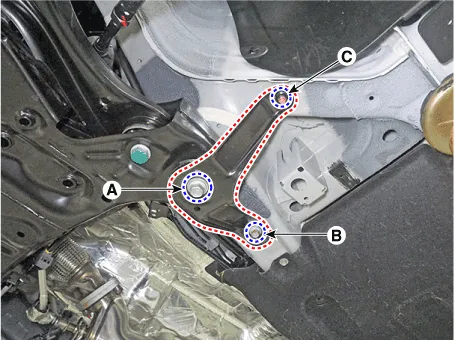

12.Remove the sub frame stay after loosening the mounting bolts (A, B) and nut (C).

Tightening torque :(A) : 176.5 - 196.1 N.m (18.0 - 20.0 kgf.m, 130.2 - 144.7 b-ft)(B) : 44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb-ft)(C) : 44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb-ft)

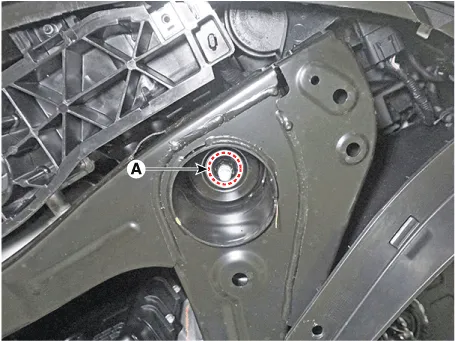

13.Loosen the sub frame mounting nuts (A).

Tightening torque :176.5 - 196.1 N.m (18.0 - 20.0 kgf.m, 130.2 - 144.7 b-ft)

14.Remove the sub frame.

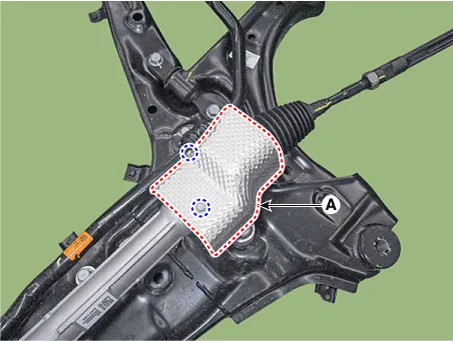

15.Remove the heat protector (A).

Tightening torque :6.8 - 10.7 N.m (0.7 - 1.1 kgf.m, 5.0 - 7.9 lb-ft)

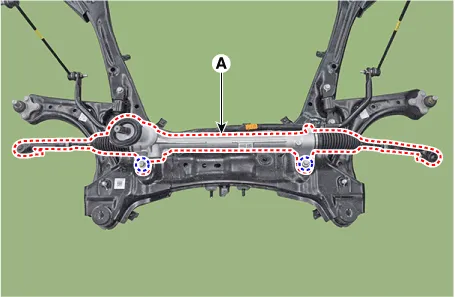

16.Remove the steering gearbox (A) from the front sub frame after loosening the mounting bolts.

Tightening torque :107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

- Replacement

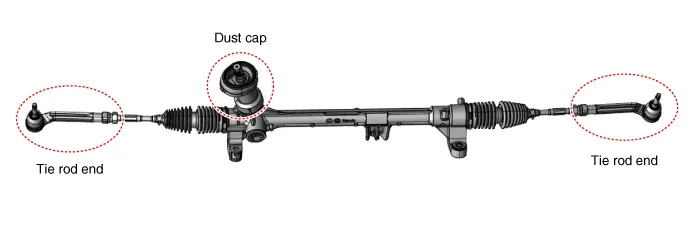

• Do not disassembly the steering gear box.

• If disassembly the steering gear box, the quality(Noise / cleanliness / functions) is not guaranteed.

Tie rod end

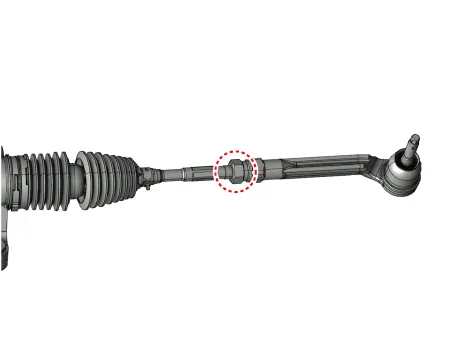

1.Remove the tie rod end after loosening the nut.

Tightening torque :49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb-ft)



• Before removing the tie rod end, note by measuring the length of the thread or marked with paint.

2.Replace with new parts.

3.Check the alignment.(Refer to Suspension System - "Alignment")
