Hyundai Santa Cruz: Motor Driven Power Steering / Steering Column and Shaft

- Replacement

1.Turn the steering wheel so that the front wheels are placed in the straight ahead position.

2.Turn the ignition switch OFF and disconnect the battery negative (-) cable.

3.Remove the driver airbag (DAB).(Refer to Restraint - "Driver Airbag (DAB) Module and Clock Spring")

4.Remove the steering wheel.(Refer to Steering System - "Steering wheel")

5.Remove the clock spring.(Refer to Restraint - "Driver Airbag (DAB) Module and Clock Spring")

6.Remove the multifunction switch.(Refer to Body Electrical System - "Multifunction switch")

7.Remove the steering column shroud lower panel.(Refer to Body - "Steering Column Shroud Panel")

8.Remove the crash pad lower pannel.(Refer to Body - "Crash Pad Lower Pannel")

9.Remove the brake pedal.(Refer to Brake System - "Brake Pedal")

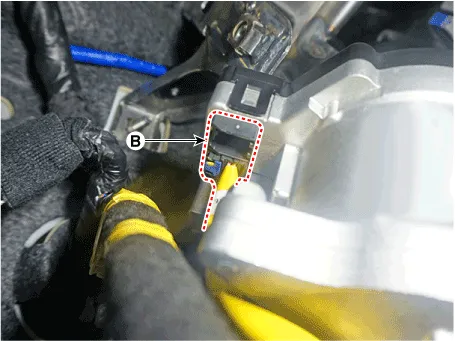

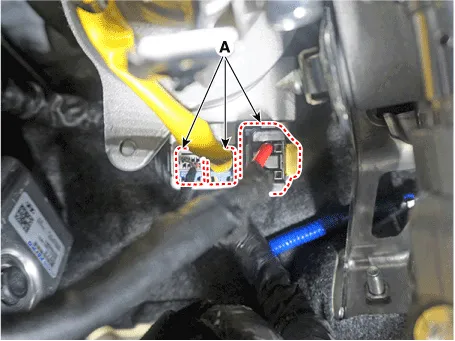

10.Disconnect the MDPS connector (A, B).

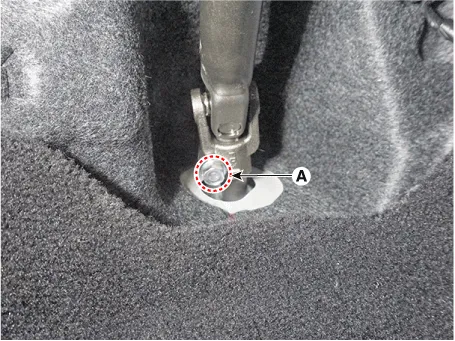

11.Separate the universal joint from the steering gear box after loosening the universal joint mounting bolt (A).

Tightening torque :49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb-ft)

• Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable.

• When mounting, securely insert the universal joint into the steering gear box pinion shaft.

• Do not reuse the universal joint bolt.

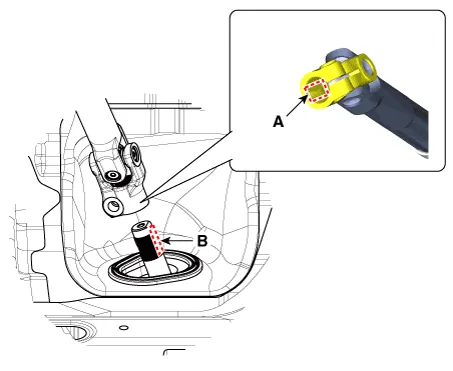

• Install by aligning the machining surface (A) of the universal joint and the machining surface (B) of the steering gearbox pinion shaft.

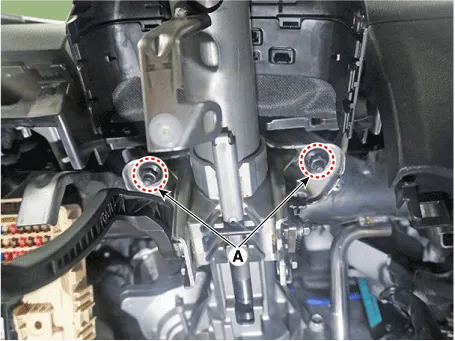

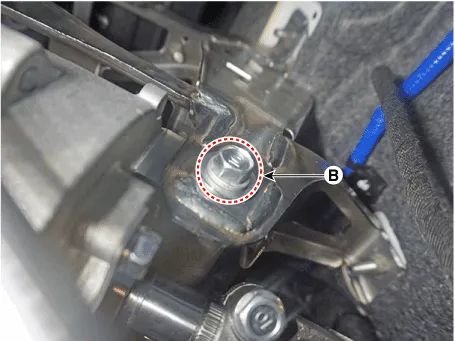

12.Remove the steering column assembly after loosening the mounting nuts (A) and bolt (B).

Tightening torque :(A) : 25.0 - 29.4 N.m (2.5 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)(B) : 53.9 - 58.8 N.m (5.5 - 6.0 kgf.m, 39.8 - 43.4 lb-ft)

13.To install, reverse the removal procedures.

• When installing a new power pack, be sure to check whether the coupling is assembled before installing it.

14.Conduct the "EPS Type Recognition" by diagnostic tool.(Refer to MDPS PowerPack Assembly - "Diagnosis with diagnostic tool")

15.Conduct the "ASP Calibration" by diagnostic tool.(Refer to MDPS PowerPack Assembly - "Diagnosis with diagnostic tool")

16.Conduct the MDPS Performance Inspection using the diagnostic tool.(Refer to Motor Driven Power Steering - "Repair procedures")

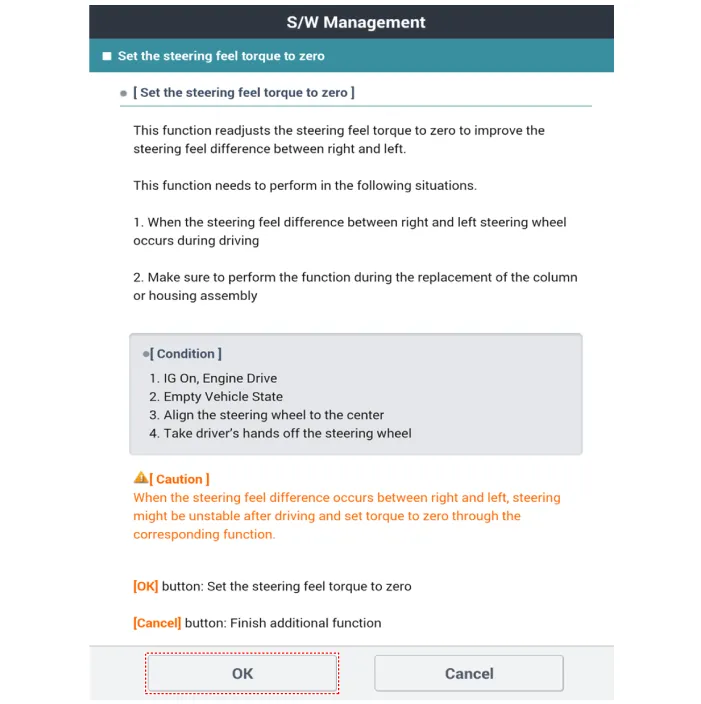

17.Set the Steering angle zero point by using the diagnostic tool.

18.Check the DTC.

19.Turn off the IGN switch and wait for 10 seconds or more. Then check the operation after starting the engine.

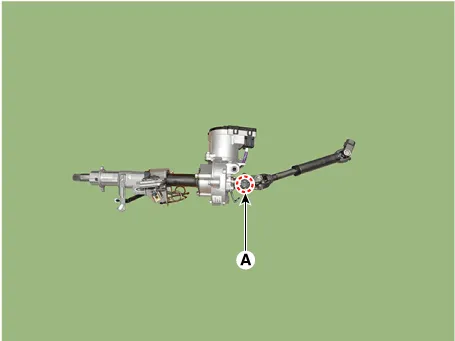

1.Loosen the bolt (A) and then disconnect the universal joint assembly from the steering column assembly.

Tightening torque : 53.9 - 58.8 N.m (5.5 - 6.0 kgf.m, 39.8 - 43.4 lb-ft)

• Do not reuse the universal joint bolt.

2.Reassembly is the reverse of the disassembly.

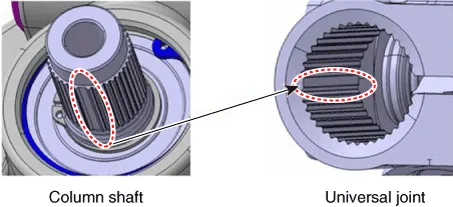

• When assembling, match the gear teeth as the below illustration.

1.Check the steering column for damage and deformation.

2.Check the steering column for damage and deformation.

3.Check the join bearing for damage and wear.

4.Check the tilt bracket for damage and cracks.

5.Check the key lock assembly for proper operation and replace it if necessary.

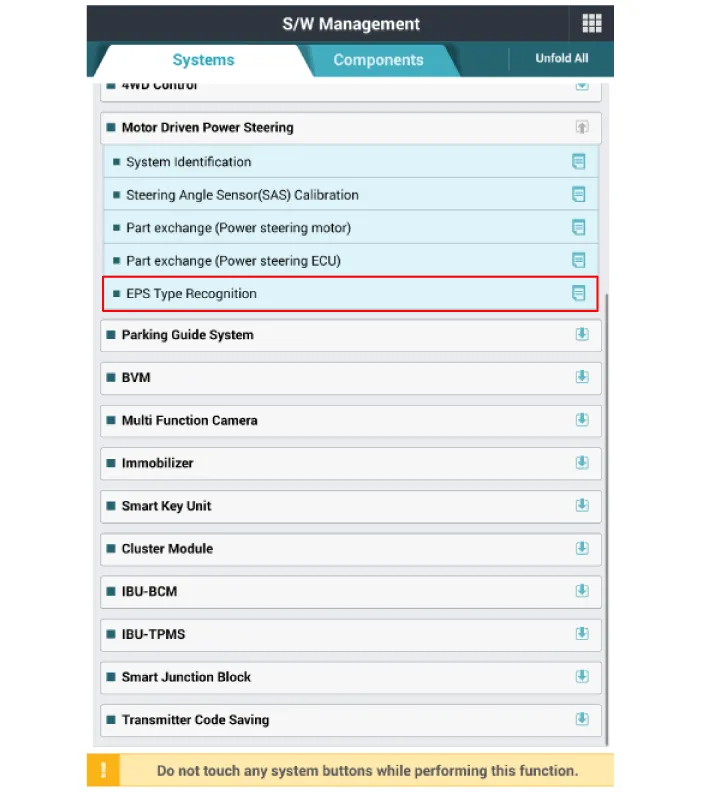

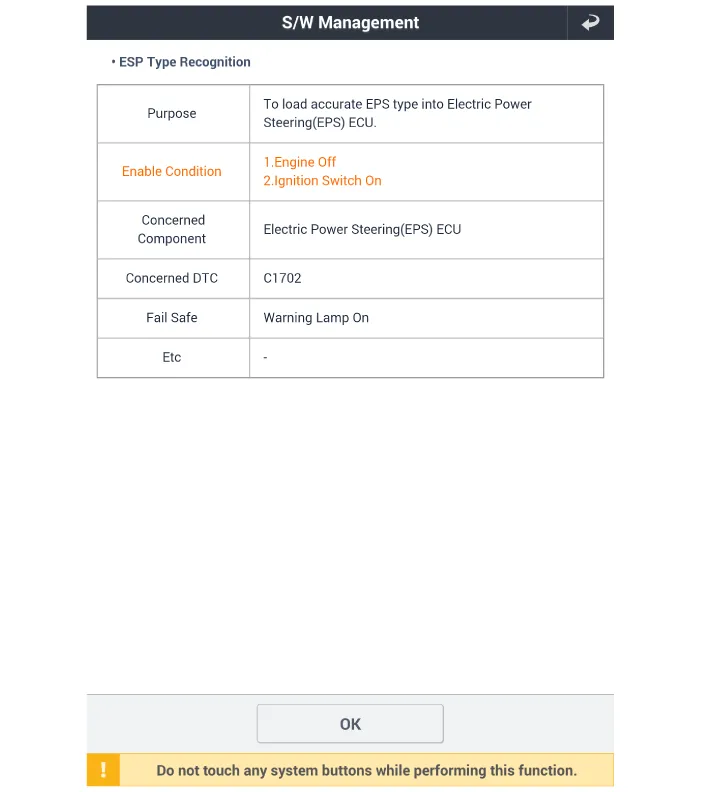

EPS Type Recognition

• When missing the EPS Type Recognition, occure a problem with motor driven power steering performance.

1.Connect self-diagnosis connector(16pins) located in the lower of driver side crash pad to self-diagnosis device.

2.Turn the self-diagnosis device after key is ON.

3.Turn the steering wheel to straight ahead position.

4.After Selecting the "vehicle model" and "system", select the "EPS Type Recognition" on diagnostic tool vehicle selection screen.

5.Remove the DTC.

6.Turn off the IG switch and wait for 20 seconds or more before starting the engine. And then make sure that MDPS works properly.SAS Calibration

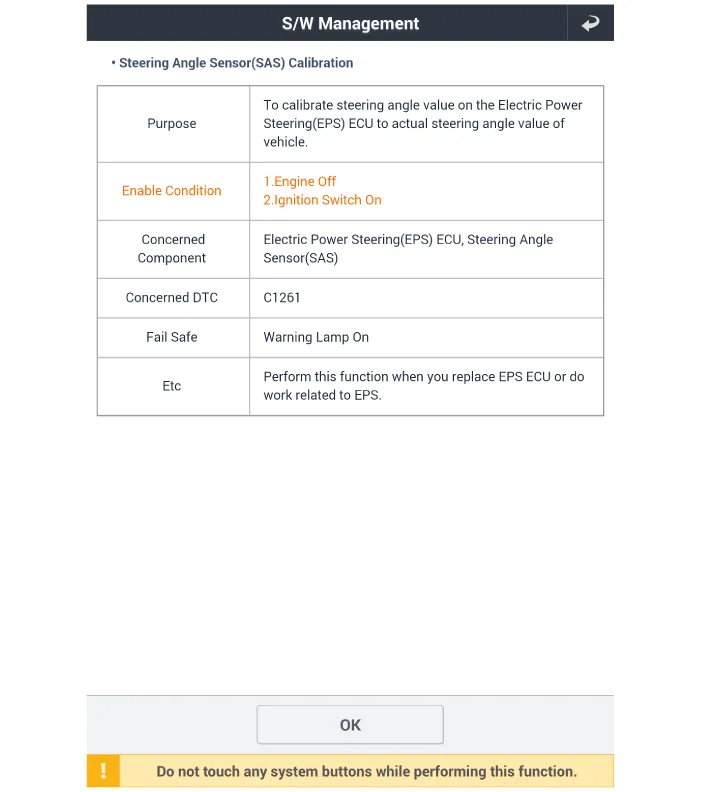

– Steering- angle sensor detects the steering angle and steering angle speed. Steering angle and steering angle speed are used for steering wheel damping and return controls in addition to providing assistance torque.

• You can use a scan tool to (diagnostic tool) check if the battery voltage is proper before perform the "SAS Calibration".

• Make sure that no connector engaged to the vehicle or scan tool is disconnected during the "SAS Calibration".

• Once the "SAS Calibration" is complete, turn off the IG switch and wait for 10 seconds or more before starting the engine to check the operation.

1.Connect self - diagnosis connector (16pins) located in the lower of driver side crash pad to self - diagnosis device.

2.Turn the self - diagnosis device after key is ON.

3.Turn the steering wheel to straight ahead position.

4.After Selecting the "vehicle model" and "system", select the "SAS Calibration" on diagnostic tool vehicle selection screen.

5.Remove the DTC.

6.Turn off the IG switch and wait for 10 seconds or more before starting the engine. And then make sure that MDPS works properly.

1.To install, reverse the removal procedures.

2.Check the alignment.(Refer to Suspension System - "Alignment")
