Hyundai Santa Cruz: Sunroof / Slide open/close

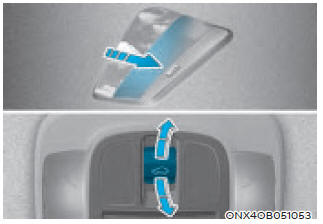

  • Push the sunroof switch rearward, the sunshade and sunroof glass slide open.
  • Push the sunroof switch forward, only the sunroof glass closes.
  • Push the sunroof switch forward or rearward to the first detent position, the sunroof glass moves until the switch is released.
  • Push the sunroof switch forward or rearward to the second detent position, the sunroof glass operates automatically (auto slide feature).
  • To stop the sunroof movement at any point, push the sunroof switch in any direction.

Information

To reduce wind noise while driving, we recommend that you drive at the recommended position before the maximum slide open position.

    Tilt Open/Close
    Push the sunroof switch upward, the sunroof glass tilts open. Push the sunroof switch forward when the sunroof glass is tilt opened, the sunroof glass closes. To stop the sunroof movement a ...

    Automatic Reversal
    If the sunroof glass senses any obstacle while it is closing automatically, it will reverse direction then stop at a certain position. The auto reverse function may not work if an object thin or ...
