• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Put on gloves to prevent hand injuries.

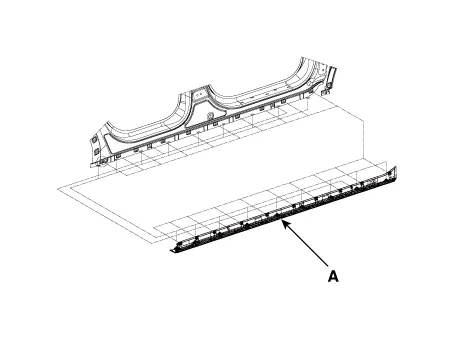

1.Remove the side seal molding (A).
2.To install, reverse the removal procedure.
• Replace any damaged clips (or pin-type retainers).
Hyundai Santa Cruz (NX4A OB) 2021-2025 Service Manual: Specifications
- Specifications
Tightening Torques
ItemsN.mKgf.mlb-ft
Transfer assembly mounting bolts60.8 - 65.76.2 - 6.744.8 - 48.5
4WD ECM mounting nuts9.8 - 11.81.0 - 1.27.2 - 8.7
Coupling assembly mounting bolts56.9 - 64.75.8 - 6.642.0 - 47.7
Propeller shaft mounting bolts49.0 - 68.65.0 - 7.036.2 - 5 ...
Hyundai Santa Cruz (NX4A OB) 2021-2025 Service Manual: Description and Operation
- Description
Back view camera will activate when the backup light is ON with the
ignition switch ON and the shift lever in the R position.This system is a
supplemental system that shows behind the vehicle through the H/UNIT or
the ECM (Reverse Display Room Mirror) mirror while backing-up.
...
